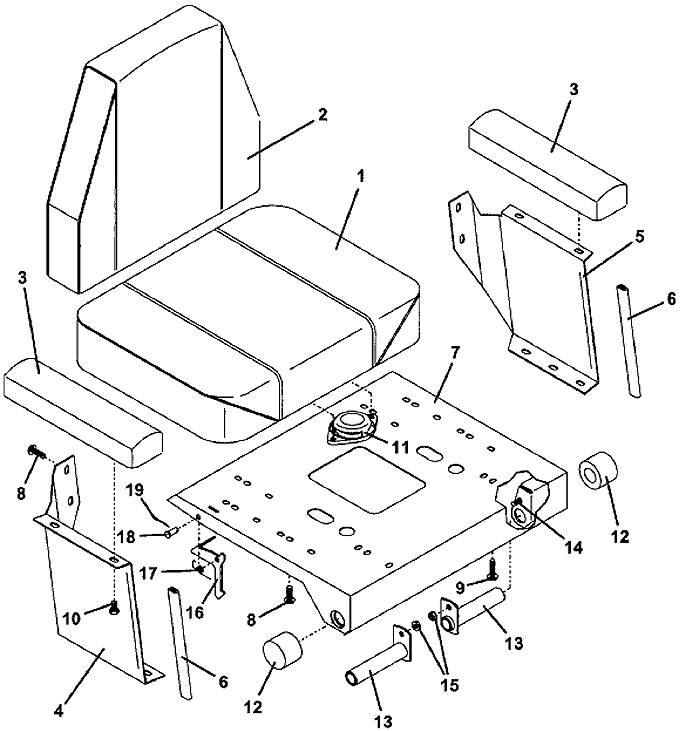

718K 720K 725K Seat Assembly - 1997
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321515 - Formed Seat Cushion | $132.25 | Add To Cart |
| 2 | 321511 - Back Cushion | $258.75 | Add To Cart |
| 3 | 321501 - Arm Rest | $58.24 | Add To Cart |
| 4 | 724310 - right Side Member | $52.71 | Add To Cart |
| 5 | 724311 - left Side Member | $52.71 | Add To Cart |
| 6 | 822630 - Seat Edge Trim | $5.44 | Add To Cart |
| 7 | 643912 - Seat Platform ISO w/a | $170.90 | Add To Cart |
| 8 | 253193 - Hex Flange Whiz Bolt | $1.06 | Add To Cart |
| 9 | 253194 - Hex Whiz Bolt | $0.72 | Add To Cart |
| 10 | 253191 - Hex Flange Whiz Bolt | $5.20 | Add To Cart |
| 11 | 183870 - Seat Switch | $13.84 | Add To Cart |
| 12 | 424095 - Seat Isolator | $7.92 | Add To Cart |
| 13 | 644618 - Seat Hinge Pin | $15.05 | Add To Cart |
| 14 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 15 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 16 | 724112 - Seat Latch | $7.51 | Add To Cart |
| 17 | 284408 - Torsion Spring | $1.98 | Add To Cart |
| 18 | 261284 - Clevis Pin | $1.47 | Add To Cart |
| 19 | 260648 - Cotter Pin | $0.12 | Add To Cart |
| 20 | 604735 - 700 AC Seat Assembly | Call for Details |
