Genuine OEM Grasshopper® Mower Parts Diagrams

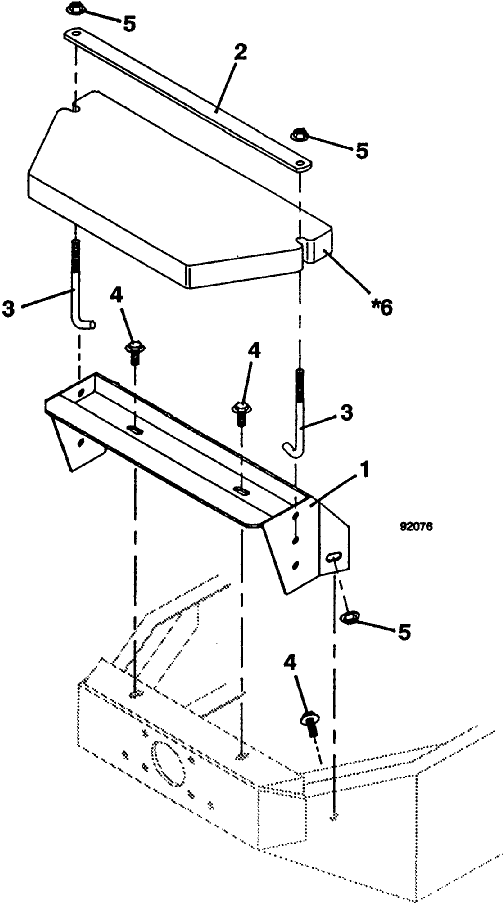

721D • Counterweight Mount Kit
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
- |
Counterweight Mount Kit |
503220 |
1 |
Weight Mount |
643915 |
2 |
Weight Cover |
729691 |
3 |
Hook Bolt |
240151 |
4 |
Whiz Bolt |
253203 |
5 |
Whiz Nut |
253043 |
6 |
Counterweight - 50 lbs. (Not Included in Kit) |
503218 |
