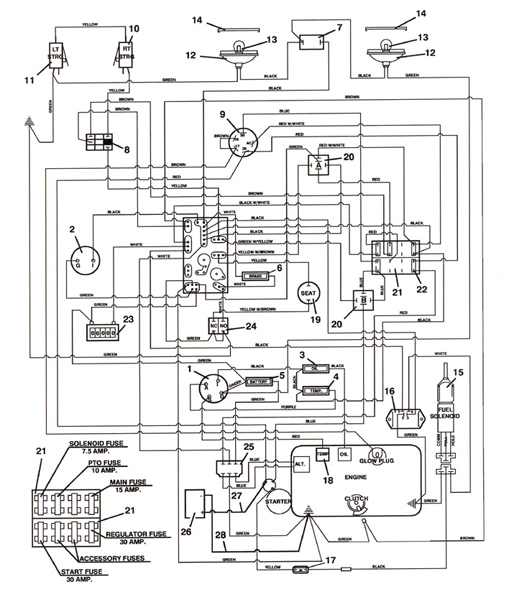

721D 21HP Kubota Diesel Wiring Diagram - 1997
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| - | 604974 - Wiring Assembly | $533.50 | Add To Cart |
| - | 161131 - Decal - Console | $18.72 | Add To Cart |
| 1 | 141160 - Coolant Temperature Gauge | $242.71 | Add To Cart |
| 2 | 141200 - Voltmeter Gauge | $50.96 | Add To Cart |
| 3 | 182327 - Oil Indicator Light | $10.03 | Add To Cart |
| 4 | 182328 - Temperature Indicator Light | $10.03 | Add To Cart |
| 5 | 182325 - Battery Indicator Light | $10.03 | Add To Cart |
| 6 | 182326 - Brake Indicator Light | $10.03 | Add To Cart |
| 7 | 184179 - Light Switch | $14.11 | Add To Cart |
| 8 | 183925 - Clutch Switch | $19.31 | Add To Cart |
| 9 | 183827 - Ignition Switch | $92.30 | Add To Cart |
| 10 | 183860 - Safety Switch - Right Steering | $11.86 | Add To Cart |
| - | 720160 - Right Steering Switch Mount | $5.53 | Add To Cart |
| 11 | 183860 - Safety Switch - Left Steering | $11.86 | Add To Cart |
| - | 720161 - Left Steering Switch Mount | $5.53 | Add To Cart |
| 12 | 182253 - Worklight Assembly (Includes Item 13) | $42.35 | Add To Cart |
| 13 | 182005 - Light Bulb | $11.10 | Add To Cart |
| 14 | 182251 - Bezel | $14.74 | Add To Cart |
| 15 | 603350 - Fuel Solenoid | $230.98 | Add To Cart |
| 16 | 184220 - Module - Switch Interlock | $62.62 | Add To Cart |
| 17 | 181735 - Fuse Holder | $3.55 | Add To Cart |
| - | 181470 - Fuse | $1.47 | Add To Cart |
| 18 | 141222 - Temperature Sender | $45.76 | Add To Cart |
| 19 | 183870 - Seat Safety Switch | $13.84 | Add To Cart |
| 20 | 184272 - Relay | $13.84 | Add To Cart |
| 21 | 181722 - Fuse Block | $6.19 | Add To Cart |
| 22 | 181470 - Fuse 30 Amp Auto | $1.47 | Add To Cart |
| - | 181465 - Fuse 15 Amp Auto | $1.47 | Add To Cart |
| - | 181460 - Fuse 7.5 Amp Auto | $1.47 | Add To Cart |
| 23 | 141551 - Hour Meter | $37.83 | Add To Cart |
| 24 | 183894 - Brake Switch | $10.03 | Add To Cart |
| 25 | 185530 - Voltage Regulator | $210.40 | Add To Cart |
| 26 | - - Battery | Call for Details | |
| - | 603105 - Battery Box Assembly | $109.05 | Add To Cart |
| - | 603570 - Battery Box Lid Assembly | $134.26 | Add To Cart |
| - | 723017 - Battery Hold Down Strap | $5.94 | Add To Cart |
| 27 | 180310 - Battery Cable 11' | $8.36 | Add To Cart |
| - | 425219 - Battery Terminal Boot | $2.97 | Add To Cart |
| 28 | 180276 - Ground Cable 16' | $10.64 | Add To Cart |
