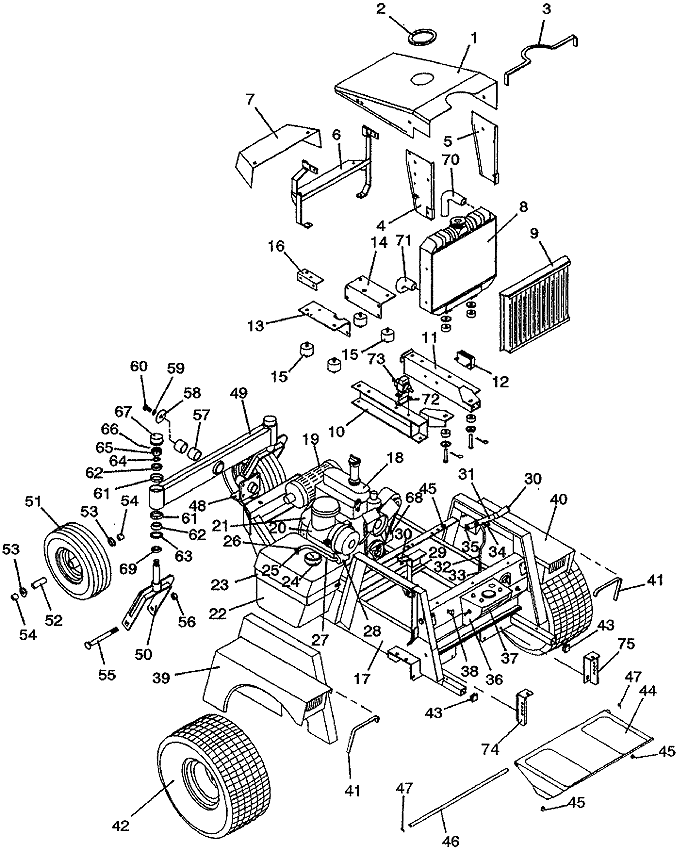

725 Tractor Assembly - 1992
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643409 - Hood Panel | Call for Details | |
| 2 | 822633 - Hood Panel Hole Trim | Call for Details | |
| 3 | 822650 - Hood Panel / Console Hole Trim | Call for Details | |
| 4 | 643799 - right Grille Support | Call for Details | |
| 5 | 643800 - left Grille Support | Call for Details | |
| 6 | 643797 - rear Hood Support | $163.55 | Add To Cart |
| 7 | 643766 - Clutch Shield | $66.01 | Add To Cart |
| 8 | 101610 - Kubota Radiator | $504.51 | Add To Cart |
| 9 | 643401 - Grille | Call for Details | |
| 10 | 643604 - Lower right Engine Mount | $126.95 | Add To Cart |
| 11 | 643605 - Lower left Engine Mount | $130.95 | Add To Cart |
| 12 | 185530 - 12v Voltage Regulator | $210.40 | Add To Cart |
| 13 | 643292 - Upper right Engine Mount | $68.25 | Add To Cart |
| 14 | 643291 - Upper left Engine Mount | $60.10 | Add To Cart |
| 15 | 424078 - Vibration Isolator | $15.92 | Add To Cart |
| 16 | 724091 - Coil Bracket | $13.68 | Add To Cart |
| 17 | 643392 - 718D/721 Tractor Frame | Call for Details | |
| 18 | 100171 - Kubota Gas Engine | Call for Details | |
| 19 | 603590 - Muffler Gasket Assembly | $514.45 | Add To Cart |
| 20 | 100940 - Kubota Air Filter | Call for Details | |
| 21 | 424519 - Air Intake Hose | $26.80 | Add To Cart |
| 22 | 603817 - Gasoline Fuel Tank Assembly (Brown) | $154.04 | Add To Cart |
| 23 | 643144 - Fuel Tank Mounting Bracket | $42.70 | Add To Cart |
| 24 | 141125 - Cap with Fuel Level | $38.55 | Add To Cart |
| 25 | 101818 - Fuel Draw Tube | $6.05 | Add To Cart |
| 26 | 280270 - Screw-type Hose Clamp | $0.95 | Add To Cart |
| 27 | 821713 - Fuel Line Hose | $11.17 | Add To Cart |
| 28 | 101005 - Kubota Fuel Pre-Filter | Call for Details | |
| 29 | 604823 - 721/725/725G2 Throttle Assembly | $65.03 | Add To Cart |
| - | 604820 - Throttle Cable Replacement Kit for Gas Engine | $31.05 | Add To Cart |
| 30 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 31 | 603557 - 700 Brake Lever Assembly | Call for Details | |
| 32 | 730361 - 700 Brake Linkage Rod | $36.14 | Add To Cart |
| 33 | 265537 - Clevis Yoke | $7.20 | Add To Cart |
| 34 | 259741 - Shoulder Bolt | $2.60 | Add To Cart |
| 35 | 260624 - Cotter Pin | $0.05 | Add To Cart |
| 36 | 623241 - 721 Console | Call for Details | |
| 37 | 721076 - Console Front Panel | Call for Details | |
| 38 | 142224 - Mechanical Choke Housing | $16.95 | Add To Cart |
| 39 | 643352 - 700 Series right Fender | Call for Details | |
| - | 163216 - 725 right Trim Decal | $5.60 | Add To Cart |
| 40 | 643353 - 700 Series left Fender | Call for Details | |
| - | 163217 - 725 left Trim Decal | $5.60 | Add To Cart |
| 41 | 822635 - 700/900 Fender Edge Trim | $6.93 | Add To Cart |
| 42 | 483921 - 20 x 10 x 8 Tan Wheel Turf Tire | $245.41 | Add To Cart |
| - | 482471 - 20 x 10 x 8 Turf Tire | Call for Details | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call for Details | |
| - | 483410 - 5-Bolt 8 x 6 Wheel | $86.25 | Add To Cart |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | $131.96 | Add To Cart |
| - | 483930 - 21 x 11 x 8 right Wheel Bar Tread Tire | $375.00 | Add To Cart |
| - | 483931 - 21 x 11 x 8 left Wheel Bar Tread Tire | $375.00 | Add To Cart |
| 43 | 422065 - 1 inch ID Square Plastic Plug | $1.08 | Add To Cart |
| 44 | 603345 - Foot Rest | Call for Details | |
| 45 | 424015 - Rubber Bumper | $2.10 | Add To Cart |
| 46 | 780658 - 700 Foot Platform Pivot Rod | Call for Details | |
| 47 | 263500 - External Retainer | $0.30 | Add To Cart |
| 48 | 604597 - rear Axle Pivot Assembly | $66.12 | Add To Cart |
| 49 | 824510 - Dual Wheel Beam | $343.73 | Add To Cart |
| 50 | 604364 - Rear Fork Lock Nut Assembly | $128.50 | Add To Cart |
| 51 | 483861 - 13 x 5 x 6 Wheel Tire with Bearing Spacer | $136.96 | Add To Cart |
| - | 482350 - 13 x 5.00 x 6 Tubeless Ribbed Tire | $44.25 | Add To Cart |
| - | 483301 - 6 x 3.25 Tan Wheel with Bearing Spacer | $101.03 | Add To Cart |
| 52 | 902475 - Rear Wheel Bearing Spacer | $14.59 | Add To Cart |
| 53 | 120050 - Ball Bearing | $13.60 | Add To Cart |
| 54 | 902425 - Axle Spacer | $7.75 | Add To Cart |
| 55 | 247725 - Carriage Bolt | $6.30 | Add To Cart |
| 56 | 253970 - Lock Nut | $10.10 | Add To Cart |
| 57 | 833275 - Reamed Oilite Bearing | $21.71 | Add To Cart |
| 58 | 257061 - Washer | $2.26 | Add To Cart |
| 59 | 257432 - Lock Washer | $0.16 | Add To Cart |
| 60 | 243560 - Hex Bolt | $0.80 | Add To Cart |
| 61 | 123522 - Bearing Cup | $2.55 | Add To Cart |
| 62 | 122522 - Tapered Bearing | $5.50 | Add To Cart |
| 63 | 125855 - Seal | $1.85 | Add To Cart |
| 64 | 257091 - 14 GA Bushing Washer | $0.72 | Add To Cart |
| 65 | 254502 - Nut | $1.50 | Add To Cart |
| 66 | 260668 - Cotter Pin | $0.05 | Add To Cart |
| 67 | 481432 - Dust Cap | $5.94 | Add To Cart |
| 68 | 100800 - Kubota Oil Filter | $17.10 | Add To Cart |
| 69 | 282615 - Spacer | $1.25 | Add To Cart |
| 70 | 101054 - Upper Radiator Hose | Call for Details | |
| 71 | 101055 - Lower Radiator Hose | Call for Details | |
| 72 | 782529 - Fuel Pump Mount Plate | $8.09 | Add To Cart |
| 73 | 101510 - Electric Fuel Pump | Call for Details | |
| 74 | 643138 - 700 right Attachment Mount | $52.39 | Add To Cart |
| 75 | 643139 - 700 left Attachment Mount | $52.39 | Add To Cart |
| 76 | 603275 - 725 Decal Set | $82.17 | Add To Cart |
