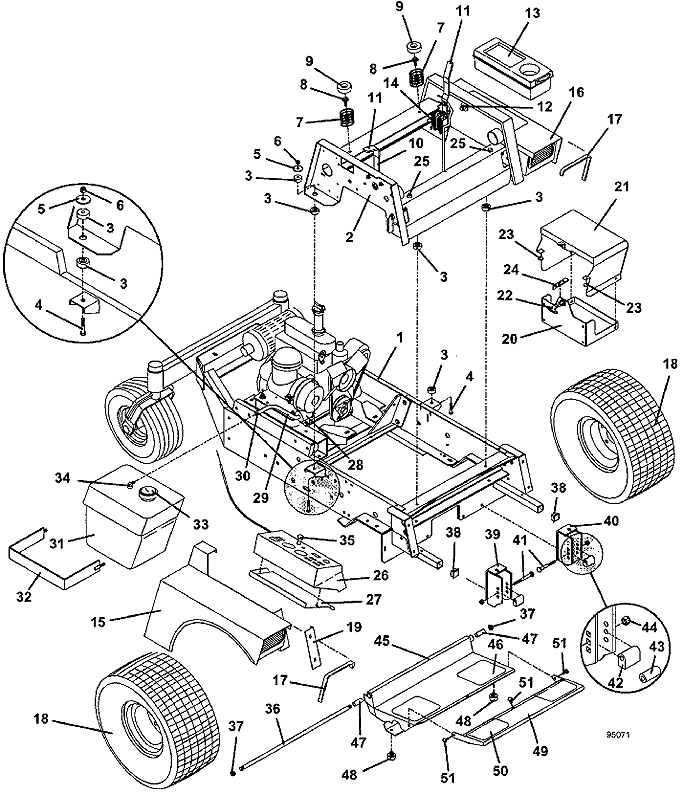

725 Tractor Assembly - 1998
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644230 - 700 Frame | Call for Details | |
| 2 | 643867 - 96 Upper Frame | Call for Details | |
| 3 | 257037 - Step Bushing | $2.39 | Add To Cart |
| 4 | 243220 - Hex Bolt | $0.96 | Add To Cart |
| 5 | 774020 - Washer | $2.16 | Add To Cart |
| 6 | 253450 - Nylon Insert Nut | $0.41 | Add To Cart |
| 7 | 283516 - Compression Spring | $8.00 | Add To Cart |
| 8 | 253203 - Whiz Flange Bolt | $15.35 | Add To Cart |
| 9 | 422127 - Seat Spring Cap | $4.29 | Add To Cart |
| 10 | 604823 - 721/725/725G2 Throttle Assembly | $65.03 | Add To Cart |
| - | 604820 - Throttle Cable Replacement Kit for Gas Engine | $31.05 | Add To Cart |
| 11 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 12 | 902280 - Spacer | $5.86 | Add To Cart |
| - | 243330 - Hex Bolt | $0.51 | Add To Cart |
| - | 257040 - Washer | $2.60 | Add To Cart |
| 13 | 422040 - Tool Box | $18.53 | Add To Cart |
| 14 | 185530 - 12v Voltage Regulator | $210.40 | Add To Cart |
| 15 | 693210 - 700/900 right Fender with Safety Decal | $311.45 | Add To Cart |
| - | 163216 - 725 right Trim Decal | $5.60 | Add To Cart |
| 16 | 693211 - 700/900 left Fender with Safety Decal | $320.10 | Add To Cart |
| - | 163217 - 725 left Trim Decal | $5.60 | Add To Cart |
| 17 | 822635 - 700/900 Fender Edge Trim | $6.93 | Add To Cart |
| 18 | 483921 - 20 x 10 x 8 Tan Wheel Turf Tire | $245.41 | Add To Cart |
| - | 482471 - 20 x 10 x 8 Turf Tire | Call for Details | |
| - | 482478 - 21 x 11 x 8 Bar Tread Tire | Call for Details | |
| - | 483410 - 5-Bolt 8 x 6 Wheel | $86.25 | Add To Cart |
| - | 483415 - 5-Bolt 8 x 9.125 Wheel | $131.96 | Add To Cart |
| - | 483930 - 21 x 11 x 8 right Wheel Bar Tread Tire | $375.00 | Add To Cart |
| - | 483931 - 21 x 11 x 8 left Wheel Bar Tread Tire | $375.00 | Add To Cart |
| 19 | 722062 - right Fender Cover Panel | $5.50 | Add To Cart |
| 20 | 603105 - Contour Battery Box Assembly | $109.05 | Add To Cart |
| 21 | 603570 - Battery Box Assembly Lid | $134.26 | Add To Cart |
| 22 | 281301 - Rubber Draw Latch | $15.73 | Add To Cart |
| 23 | 424029 - Rubber Bumper | $0.72 | Add To Cart |
| 24 | 723017 - Bolt-On Battery Clamp | $5.94 | Add To Cart |
| 25 | 424015 - Rubber Bumper | $2.10 | Add To Cart |
| 26 | 693105 - Console with Decal for Liquid-Cooled Engines | Call for Details | |
| 27 | 721152 - 96 Side Console Fill Panel | $36.08 | Add To Cart |
| 28 | 101005 - Kubota Fuel Pre-Filter | Call for Details | |
| 29 | 821713 - Fuel Line Hose | $11.17 | Add To Cart |
| 30 | 280270 - Screw-type Hose Clamp | $1.99 | Add To Cart |
| 31 | 603817 - Gasoline Fuel Tank Assembly (Brown) | $154.04 | Add To Cart |
| 32 | 643144 - Fuel Tank Mounting Bracket | $42.70 | Add To Cart |
| 33 | 141125 - Cap with Fuel Level | $50.11 | Add To Cart |
| 34 | 101818 - Fuel Draw Tube | $9.20 | Add To Cart |
| 35 | 142218 - Mechanical Choke | $56.35 | Add To Cart |
| 36 | 780673 - 700 Foot Platform Pivot Rod | Call for Details | |
| 37 | 253470 - Nylon Insert Nut | $0.72 | Add To Cart |
| 38 | 422065 - 1 inch ID Square Plastic Plug | $1.08 | Add To Cart |
| 39 | 643092 - 700/900 right QD Deck Mount | $44.07 | Add To Cart |
| 40 | 643093 - 700/900 left QD Deck Mount | $33.90 | Add To Cart |
| 41 | 247280 - Special Carriage Bolt | $2.33 | Add To Cart |
| 42 | 282575 - Deck Mount Bushing | $5.28 | Add To Cart |
| 43 | 282576 - Floating Deck Mount Bushing | $4.62 | Add To Cart |
| 44 | 253460 - Nylon Insert Nut | $5.11 | Add To Cart |
| 45 | 604346 - 700/900 Adjustable Foot Platform Assembly | $271.57 | Add To Cart |
| 46 | 420905 - Foot Rest Tread | $3.13 | Add To Cart |
| 47 | 422615 - Nylon Bearing | $1.79 | Add To Cart |
| 48 | 424052 - Rubber Bumper | $5.78 | Add To Cart |
| 49 | 603301 - 700 Foot Platform Extension | $73.14 | Add To Cart |
| 50 | 420904 - Foot Rest Tread Extension | $2.47 | Add To Cart |
| 51 | 247130 - Carriage Bolt | $0.82 | Add To Cart |
| 53 | 603275 - 725 Decal Set | $82.17 | Add To Cart |
