Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

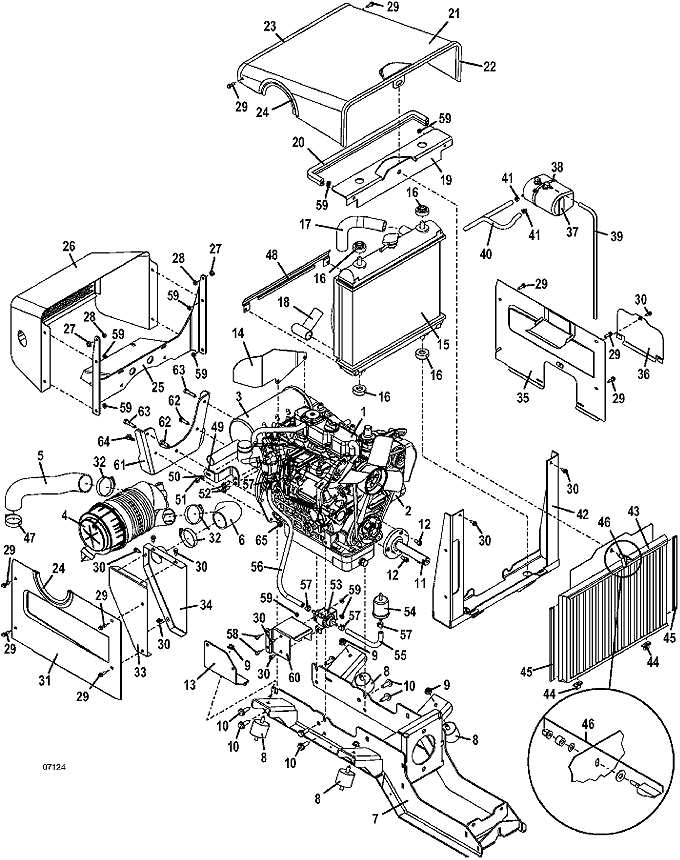

729T6 • Engine Assembly

2008

Engine Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Gas Engine

100172

2

Kubota Oil Filter

100800

3

Kubota Muffler

101235

-

Exhaust Flange Gasket

101040

4

Nelson 90 Degree Air Cleaner

100207

-

Clip for Air Cleaner Cover

100197

-

Air Cleaner Cover

100199

-

Dust Ejector

100202

-

Kohler Rain Cap

100203

-

Outer HD Air Filter

100936

-

Inner HD Air Filter

100937

5

Carburetor Breather Hose

424535

6

Breather Inlet Hose

424520

7

Drive Train Mount

644879

8

Vibration Isolator

424073

9

Whiz Nut

253043

10

Hex Bolt

271121

11

700T Stub Coupler Shaft

824632

12

M8 Socket Head Screw

270075

13

Coil Mount

724213

14

Muffler Shield

723228

15

Kubota 902 Radiator

101612

16

Radiator Mount Isolator Bushing

101080

17

Upper Radiator Hose

101058

18

Lower Radiator Hose

101059

19

Radiator Channel Clamp

729327

20

Bulb Hood Seal

822518

21

722D Upper Hood

644293

22

Front Hood Trim

822639

23

Rear Hood Trim

822637

24

Air Cleaner Trim Seal

822513

25

729 Rear Hood Support for Water Cooled Models

644857

26

Rear Hood

645307

27

.25 THK Spacer

902297

28

Lock Nut

253850

29

Hex Whiz Bolt

253175

30

Hex Whiz Bolt

253173

31

Right Side Hood

722712

32

Screw Type Hose Clamp

280305

33

Air Intake Box Mount

644066

34

Air Intake Box

644059

35

722D W/A Left Side Hood

644322

36

Oil filter Cover

722722

37

Expansion Tank

422012

38

Tie

423154

39

Clear Vent Hose

821748

40

Hose

821749

41

Spring Hose Clamp

280260

42

Lower 700DT Radiator Mount

644655

43

902D Grille w/Guard

644668

44

Rear Belt Shield Isolator

422090

45

Radiator Grille Trim

822636

46

Swell Latch Assembly

604805

47

Screw Type Hose Clamp

280303

48

Fan Shield

721006

49

Muffler Support Strap

732604

50

Lock Washer

257402

51

Hex Nut

274145

52

Flange Hex Bolt w/Ser

271021

53

Electric Fuel Pump

101510

54

Kubota Fuel PreFilter

101005

55

Fuel Hose

821727

56

Fuel Hose

821728

57

Spring Hose Clamp

280261

58

Truss Whiz Bolt

253176

59

Whiz Nut

253025

60

729T Fuel Pump Mount & Shield

723090

61

PTO Rear Mount

644863

62

Hex Head

271023

63

Hex Head M8 Bolt

271055

64

Hex Flange Whiz Bolt

253192

65

Whiz Nut

253035

return to 729T6 index return to top of page
