Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

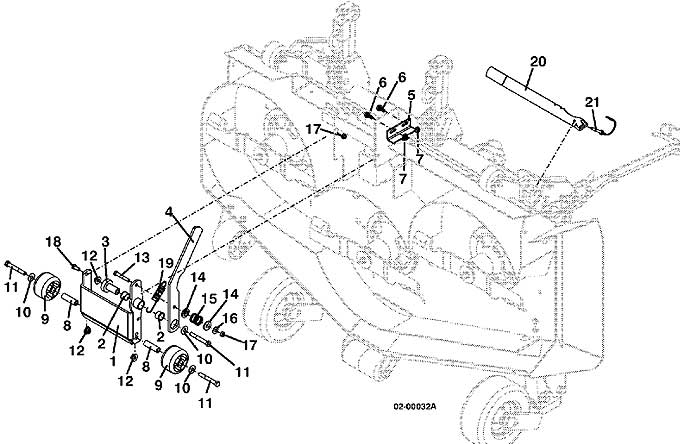

Deck Stand Assembly • Grasshopper 9852 Deck

2003

Deck Stand Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Deck Stand Roller Mount

824591

2

Oilite Bearing

121756

3

Pedestal Bearing

121650

4

Roller Lever Mount

776415

5

Roller Lever Stop

754067

6

Hex Flange Whiz Bolt

253192

7

Whiz Nut

253035

8

Roller Mount Spacer

902284

9

Roller

426122

10

Washer

257040

11

Hex Bolt

243360

12

Whiz Nut

253043

13

Hex Bolt

243225

14

Washer

257067

15

Compression Spring

283332

16

Washer

257030

17

Nylon Insert Nut

253450

18

Hex Bolt

243205

19

Extension Spring

283818

20

Standard Traction Tool Kit

783068

21

Linch Pin

261624

22

Deck Stand Assembly

606304

return to 9852 index return to top of page
