Genuine OEM Grasshopper® Mower Parts Diagrams

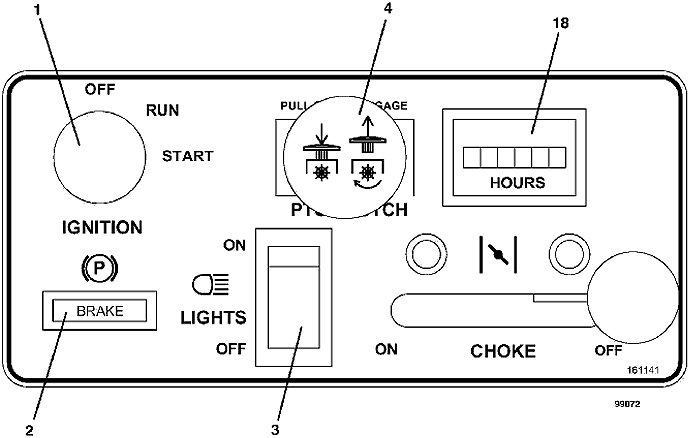

618 • Console Diagram
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Key Switch - Briggs & Stratton / Kohler |
183806 |
- |
Ignition Key with Cover |
101101 |
- |
Nut |
254498 |
- |
Plastic Panel |
422078 |
2 |
Brake Indicator Light |
182326 |
3 |
Rocker Switch |
184179 |
4 |
Push / Pull Switch |
183925 |
18 |
Snap-In Hour Meter |
141551 |
19 |
600 Console Decal |
161136 |
