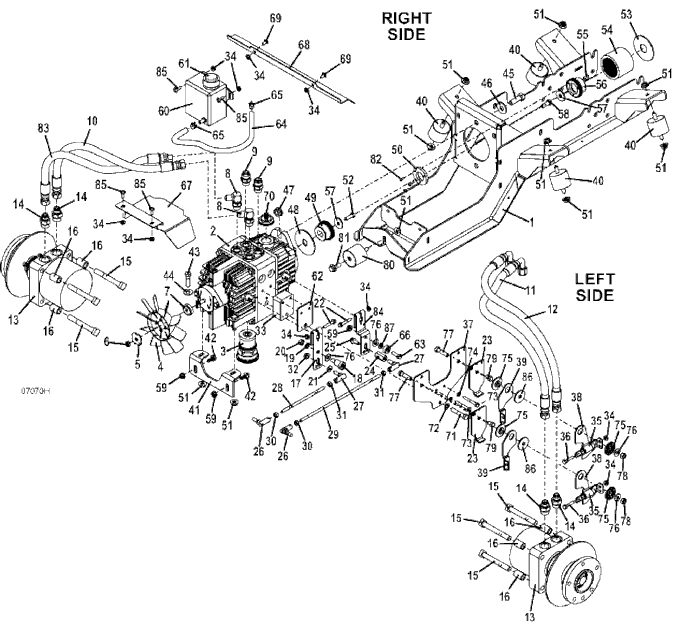

721DT Drive Assembly Serial #6214079 & Above - 2012
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644878 - 721DT Drive Train Mount | Call for Details | |
| 2 | 391467 - Hydro | $1590.25 | Add To Cart |
| 3 | 130505 - Tandem Transmission Filter | $51.41 | Add To Cart |
| 4 | 130431 - H2&T Hydro Fan | $39.78 | Add To Cart |
| 5 | 130432 - Fan Retainer Washer | $20.54 | Add To Cart |
| 6 | 253461 - Nylon Insert Nut | $2.23 | Add To Cart |
| 7 | 130430 - Fan Hub | $11.48 | Add To Cart |
| 8 | 360061 - O-Ring Adapter | $10.87 | Add To Cart |
| 9 | 360064 - Fitting Adapter | $8.21 | Add To Cart |
| 10 | 424384 - Hose Assembly | $43.22 | Add To Cart |
| 11 | 424385 - Hose Assembly | $53.56 | Add To Cart |
| 12 | 424386 - Hose Assembly | $56.49 | Add To Cart |
| 13 | 603611 - H2 Wheel Motor with Hub | $999.15 | Add To Cart |
| 14 | 360063 - O-Ring Adapter | $8.36 | Add To Cart |
| 15 | 243622 - Square Head Bolt | $3.79 | Add To Cart |
| 16 | 902299 - Wheel Motor Spacer | Call for Details | |
| 17 | 729661 - 6/700T Control Arm | $69.06 | Add To Cart |
| 18 | 603734 - 6/700T Eccentric Roller Assembly | $10.85 | Add To Cart |
| 19 | 257410 - External Star Washer | $0.38 | Add To Cart |
| 20 | 254450 - Nut | $0.38 | Add To Cart |
| 21 | 257019 - Flat Washer | $0.48 | Add To Cart |
| 22 | 253182 - Hex Whiz Bolt | $0.60 | Add To Cart |
| 23 | 729660 - 6/700T Return Adjustment Plate | Call for Details | |
| 24 | 783730 - Neutral Return Spacer | $16.58 | Add To Cart |
| 25 | 253186 - Hex Whiz Bolt | $1.79 | Add To Cart |
| 26 | 265615 - Righthand Thread Ball Joint | $6.52 | Add To Cart |
| 27 | 265616 - Lefthand Thread Ball Joint | $6.52 | Add To Cart |
| 28 | 780150 - Steering Rod | $10.70 | Add To Cart |
| 29 | 780171 - Steering Rod | $13.30 | Add To Cart |
| 30 | 254441 - Nut | $0.26 | Add To Cart |
| 31 | 254444 - Nut | $0.60 | Add To Cart |
| 32 | 253038 - Whiz Nut | $0.50 | Add To Cart |
| 33 | 422041 - Plastic Return Spacer | Call for Details | |
| 34 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 35 | 283823 - Extension Spring | $2.23 | Add To Cart |
| 36 | 243035 - Hex Bolt | $0.60 | Add To Cart |
| 37 | 774299 - 6/700T Neutral Return Mount | Call for Details | |
| 38 | 729639 - Return Arm | $15.41 | Add To Cart |
| 39 | 729398 - Neutral Return Arm | $15.99 | Add To Cart |
| 40 | 424073 - Vibration Isolator | $13.45 | Add To Cart |
| 41 | 725563 - Front Pump Mount | $13.50 | Add To Cart |
| 42 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 43 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 44 | 257040 - Washer | $2.60 | Add To Cart |
| 45 | 243570 - Hex Bolt | $1.10 | Add To Cart |
| 46 | 257060 - Washer | $0.55 | Add To Cart |
| 47 | 253066 - Whiz nut | $1.03 | Add To Cart |
| 48 | 774175 - DD Washer | $7.42 | Add To Cart |
| 49 | 388577 - Coupler Hub | $18.05 | Add To Cart |
| 50 | 424151 - Coupling Stabilizer w/Holes | $8.36 | Add To Cart |
| 51 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 52 | 243206 - Hex Bolt | $0.60 | Add To Cart |
| 53 | 774176 - 3 inch (outer dimension) Washer | $6.35 | Add To Cart |
| 54 | 388560 - Nylon Coupler Sleeve | $21.78 | Add To Cart |
| 55 | 281580 - Square Key | $1.47 | Add To Cart |
| 56 | 831034 - Flex Coupler w/Holes | $28.80 | Add To Cart |
| 57 | 774020 - Washer | $2.16 | Add To Cart |
| 58 | 243337 - GR 8 Hex Bolt | $1.58 | Add To Cart |
| 59 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 60 | 421981 - Oil Expansion Tank | $58.99 | Add To Cart |
| 61 | 421991 - Vented Cap w/Gasket | $9.35 | Add To Cart |
| 62 | 774296 - 700T Return Mount Spacer | $5.85 | Add To Cart |
| 63 | 243205 - Hex Bolt | $0.67 | Add To Cart |
| 64 | 821730 - Fuel Hose | $18.20 | Add To Cart |
| 65 | 280261 - Spring Hose Clamp | $1.99 | Add To Cart |
| 66 | 120025 - Double Seal Ball Bearing | $4.12 | Add To Cart |
| 67 | 722976 - 700T Fan Shroud | $22.35 | Add To Cart |
| 68 | 722982 - 721DT Coupler Shield | Call for Details | |
| 69 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 70 | 130510 - T2 Expansion Tank Adapter | $27.76 | Add To Cart |
| 71 | 243352 - Hex Bolt | $1.36 | Add To Cart |
| 72 | 257412 - Lock Washer | $0.26 | Add To Cart |
| 73 | 243040 - Hex Bolt | $0.60 | Add To Cart |
| 74 | 257392 - Lock Washer | $0.22 | Add To Cart |
| 75 | 822304 - Neutral Return Pivot Bearing | $4.29 | Add To Cart |
| 76 | 257030 - Washer | $0.38 | Add To Cart |
| 77 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 78 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 79 | 243186 - Hex Bolt | $0.48 | Add To Cart |
| 80 | 424071 - Vibration Isolator | $14.56 | Add To Cart |
| 81 | 253203 - Flange Whiz Bolt | $15.35 | Add To Cart |
| 82 | 250164 - Truss Machine Screw | $0.05 | Add To Cart |
| 83 | 424383 - Hose Assembly | $41.73 | Add To Cart |
| 84 | 729662 - 700T Water Cooled Bent Control Arm | $70.09 | Add To Cart |
| 85 | 253179 - Phillips Truss Whiz Bolt | $1.20 | Add To Cart |
| 86 | 774292 - Washer | $2.30 | Add To Cart |
| 87 | 257032 - Washer | $0.12 | Add To Cart |
