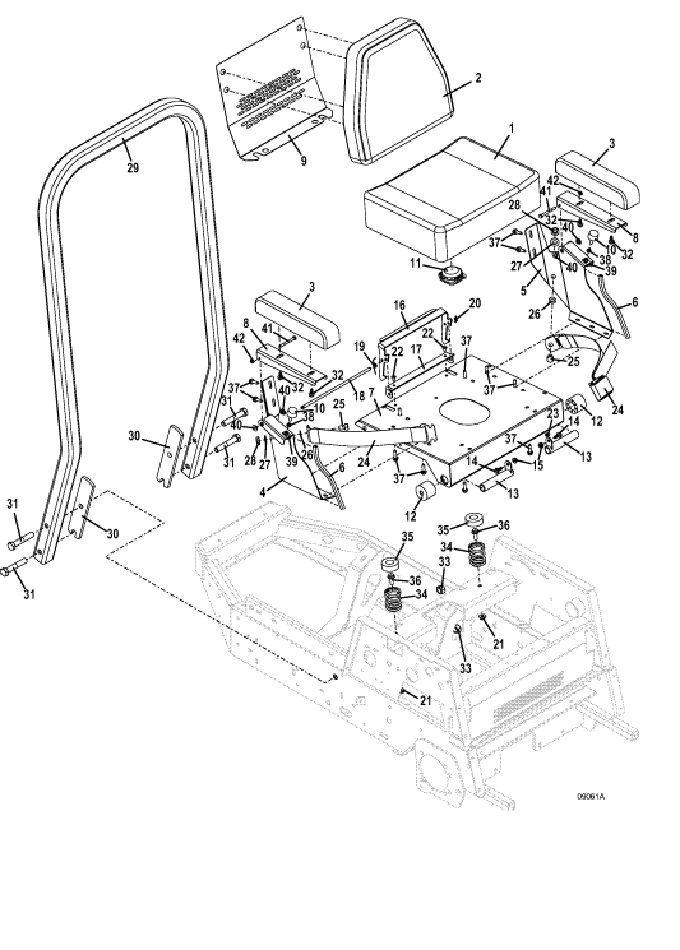

725DT6 Seat & ROPS Assembly - 2014
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 321518 - Cordura Seat Cushion | $299.00 | Add To Cart |
| 2 | 321520 - Cordura Back Cushion with Logo | $258.75 | Add To Cart |
| 3 | 321523 - Contoured Cordura Arm Rest | $58.24 | Add To Cart |
| 4 | 723435 - Right Seat Side with Mount for Folding Armrest | $58.19 | Add To Cart |
| 5 | 723436 - Left Seat Side with Mount for Folding Armrest | $58.19 | Add To Cart |
| 6 | 822630 - Seat Edge Trim | $5.44 | Add To Cart |
| 7 | 644816 - Dual Latch Seat Mount | Call for Details | |
| 8 | 754288 - Folding Arm Rest | Call for Details | |
| 9 | 722884 - Raised Backrest Seat Rein | Call for Details | |
| 10 | 424056 - Bumper with Stud | $7.34 | Add To Cart |
| 11 | 183871 - Twist-In Seat Switch | $13.00 | Add To Cart |
| 12 | 424095 - Seat Isolator | $7.92 | Add To Cart |
| 13 | 644618 - Seat Hinge Pin | $15.05 | Add To Cart |
| 14 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 15 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 16 | 754240 - Seat Dual Latch | $25.35 | Add To Cart |
| 17 | 754226 - Dual Latch Mount Bracket | $9.50 | Add To Cart |
| 18 | 730230 - Seat Latch Pivot Pin | Call for Details | |
| 19 | 284408 - Torsion Spring | $1.98 | Add To Cart |
| 20 | 260606 - Cotter Ring | $0.48 | Add To Cart |
| 21 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 22 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 23 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 24 | 324200 - Non Retracting Seat Belt | $45.60 | Add To Cart |
| 25 | 243551 - Hex Bolt | $1.47 | Add To Cart |
| 26 | 257063 - Washer | $0.36 | Add To Cart |
| 27 | 257062 - Washer | $0.38 | Add To Cart |
| 28 | 253470 - Nylon Insert Nut | $0.72 | Add To Cart |
| 29 | 324103 - 700/900 ROPS Tube | $280.00 | Add To Cart |
| 30 | 901645 - 700/900 ROPS Spacer | $24.83 | Add To Cart |
| 31 | 243840 - Hex Bolt | $3.55 | Add To Cart |
| 32 | 253191 - Hex Flange Whiz Bolt | $5.20 | Add To Cart |
| 33 | 253970 - Lock Nut | $10.10 | Add To Cart |
| 34 | 283516 - Compression Spring | $8.00 | Add To Cart |
| 35 | 422127 - Seat Spring Cap | $4.29 | Add To Cart |
| 36 | 253203 - Whiz Flange Bolt | $15.35 | Add To Cart |
| 37 | 253193 - Hex Flange Whiz Bolt | $1.06 | Add To Cart |
| 38 | 833542 - Bumper Nut Cap | $2.39 | Add To Cart |
| 39 | 830325 - Speed Nut | $2.97 | Add To Cart |
| 40 | 422508 - Step Bushing | $2.64 | Add To Cart |
| 41 | 243050 - Hex Bolt | $0.84 | Add To Cart |
| 42 | 253440 - Nylon Insert Nut | $2.25 | Add To Cart |
