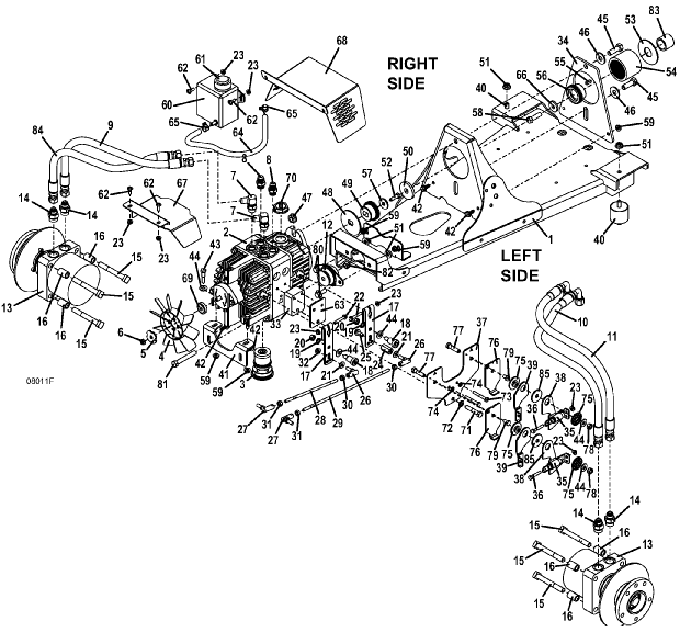

729BT6 Drive Assembly - 2013
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644876 - Drive Train Mount 700T Briggs | Call for Details | |
| 2 | 391470 - Parker 16cc Tandem Hydro | $1656.50 | Add To Cart |
| 3 | 130505 - Tandem Transmission Filter | $51.41 | Add To Cart |
| 4 | 130434 - 8.3 inch T6 Fan | $62.25 | Add To Cart |
| 5 | 130432 - Fan Retainer Washer | $20.54 | Add To Cart |
| 6 | 253461 - Nylon Insert Nut | $2.23 | Add To Cart |
| 7 | 360061 - O-Ring Adapter | $10.87 | Add To Cart |
| 8 | 360064 - Fitting Adapter | $8.21 | Add To Cart |
| 9 | 424384 - Hose Assembly | $43.22 | Add To Cart |
| 10 | 424385 - Hose Assembly | $53.56 | Add To Cart |
| 11 | 424386 - Hose Assembly | $56.49 | Add To Cart |
| 12 | 424070 - Flange VIB ISO | $34.20 | Add To Cart |
| 13 | 603614 - T6 Wheel Motor with Hub | $1073.70 | Add To Cart |
| 14 | 360063 - O-Ring Adapter | $8.36 | Add To Cart |
| 15 | 243622 - Square Head Bolt | $3.79 | Add To Cart |
| 16 | 902299 - Wheel Motor Spacer | Call for Details | |
| 17 | 729661 - Control Arm -6/700T | $69.06 | Add To Cart |
| 18 | 603734 - 6/700T Eccentric Roller Assembly | $10.85 | Add To Cart |
| 19 | 257410 - External Star Washer | $0.38 | Add To Cart |
| 20 | 254450 - Nut | $0.38 | Add To Cart |
| 21 | 257019 - Flat Washer | $0.48 | Add To Cart |
| 22 | 253182 - Hex Bolt Whiz | $0.60 | Add To Cart |
| 23 | 253025 - Nut Whiz | $0.36 | Add To Cart |
| 24 | 783730 - Neutral Return Spacer | $16.58 | Add To Cart |
| 25 | 253186 - Hex Whiz Bolt | $1.79 | Add To Cart |
| 26 | 265615 - Righthand Thread Ball Joint | $6.52 | Add To Cart |
| 27 | 265616 - Lefthand Thread Ball Joint | $6.52 | Add To Cart |
| 28 | 780176 - Steering Rod LT/RT 8.125 | Call for Details | |
| 29 | 780177 - Steering Rod LT/RT 13.50 | Call for Details | |
| 30 | 254441 - Nut | $0.26 | Add To Cart |
| 31 | 254444 - Nut | $0.60 | Add To Cart |
| 32 | 253038 - Whiz Nut | $0.50 | Add To Cart |
| 33 | 422041 - Plastic RTN Spacer | Call for Details | |
| 34 | 775123 - Tandem Pump Mount Spacer | Call for Details | |
| 35 | 283823 - Extension Spring | $2.23 | Add To Cart |
| 36 | 243035 - Hex Bolt | $0.60 | Add To Cart |
| 37 | 774299 - Neutral Return Mount 6/700T | Call for Details | |
| 38 | 729639 - Return Arm | $15.41 | Add To Cart |
| 39 | 729398 - Neutral Return Arm | $15.99 | Add To Cart |
| 40 | 424073 - Vibration Isolator | $13.45 | Add To Cart |
| 41 | 725522 - Front Pump Mount | Call for Details | |
| 42 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 43 | 243215 - Hex Bolt | $0.96 | Add To Cart |
| 44 | 257030 - Washer | $0.38 | Add To Cart |
| 45 | 243570 - Hex Bolt | $1.10 | Add To Cart |
| 46 | 257060 - Washer | $0.55 | Add To Cart |
| 47 | 253066 - Nut Whiz | $1.03 | Add To Cart |
| 48 | 774175 - DD Washer | $7.42 | Add To Cart |
| 49 | 388577 - Coupler Hub | $18.05 | Add To Cart |
| 50 | 424150 - Coupling Stabilizer | $9.65 | Add To Cart |
| 51 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 52 | 243206 - Hex Bolt | $0.60 | Add To Cart |
| 53 | 774184 - Washer | $8.17 | Add To Cart |
| 54 | 388560 - Nylon Coupler Sleeve | $21.78 | Add To Cart |
| 55 | 281580 - Square Key | $1.47 | Add To Cart |
| 56 | 388579 - Coupler Hub | $31.07 | Add To Cart |
| 57 | 774020 - Washer | $2.16 | Add To Cart |
| 58 | 243456 - Hex Bolt | $1.68 | Add To Cart |
| 59 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 60 | 421981 - Oil Expansion Tank | $58.99 | Add To Cart |
| 61 | 421991 - Vented Cap with Gasket | $9.35 | Add To Cart |
| 62 | 253179 - Phillips Head Whiz Truss Bolt | $1.20 | Add To Cart |
| 63 | 774296 - 700T Return Mount Spacer | $5.85 | Add To Cart |
| 64 | 821709 - Hydro Expansion Hose | $13.60 | Add To Cart |
| 65 | 280261 - Spring Hose Clamp | $1.99 | Add To Cart |
| 66 | 775124 - Washer | $5.86 | Add To Cart |
| 67 | 722976 - Fan Shroud 700T | $22.35 | Add To Cart |
| 68 | 722985 - Coupler Shield 700BT | $33.05 | Add To Cart |
| 69 | 130433 - Fan Hub | $11.48 | Add To Cart |
| 70 | 130510 - T2 Expansion Tank Adapter | $27.76 | Add To Cart |
| 71 | 243352 - Hex Bolt | $1.36 | Add To Cart |
| 72 | 257412 - Lock Washer | $0.26 | Add To Cart |
| 73 | 243040 - Hex Bolt | $0.60 | Add To Cart |
| 74 | 257392 - Lock Washer | $0.22 | Add To Cart |
| 75 | 822304 - Neutral Return Pivot Bearing | $4.29 | Add To Cart |
| 76 | 729660 - Adjustment Plate - Return 6/700T | Call for Details | |
| 77 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 78 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 79 | 243186 - Hex Bolt | $0.48 | Add To Cart |
| 80 | 253203 - Flange Bolt Whiz | $15.35 | Add To Cart |
| 81 | 243475 - Hex Bolt | $1.60 | Add To Cart |
| 82 | 253465 - Nylon Nut Insert | Call for Details | |
| 83 | 902592 - Spacer | $12.15 | Add To Cart |
| 84 | 424383 - Hose Assembly | $41.73 | Add To Cart |
| 85 | 774292 - Washer | $2.30 | Add To Cart |
