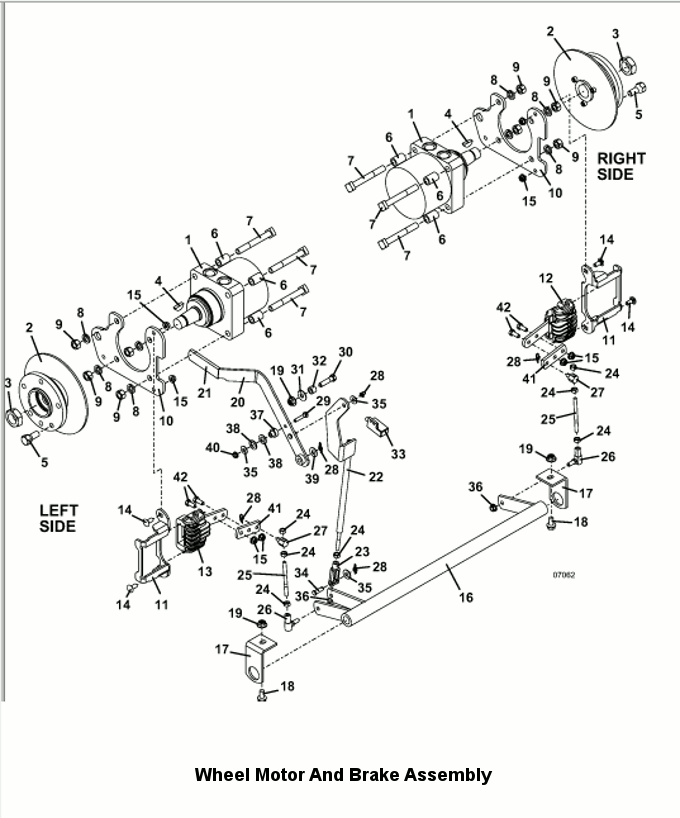

729BT6 Wheel Motor & Brake Assembly - 2008
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603614 - T6 Wheel Motor with Hub | $1073.70 | Add To Cart |
| 2 | 604442 - Hub & Rotor Assembly | $149.96 | Add To Cart |
| - | 259592 - Socket Head Screw | $1.68 | Add To Cart |
| - | 775192 - 8.0 Brake Rotor | $32.76 | Add To Cart |
| 3 | 254522 - Nut | $14.43 | Add To Cart |
| 4 | 281860 - Woodruff Key | $2.72 | Add To Cart |
| 5 | 248565 - Lug Bolt | $2.54 | Add To Cart |
| 6 | 902299 - Wheel Motor Spacer | Call for Details | |
| 7 | 243622 - Square Head Bolt | $3.79 | Add To Cart |
| 8 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 9 | 254470 - Nut | $0.62 | Add To Cart |
| 10 | 776274 - Brake & Traction Kit Mount | Call for Details | |
| 11 | 644588 - Brake Caliper Mount | $42.19 | Add To Cart |
| 12 | 481102 - Clockwise Caliper Brake Assembly | $100.45 | Add To Cart |
| - | 603150 - Brake Pad Kit | $44.07 | Add To Cart |
| 13 | 481103 - Counter Clockwise Caliper Brake Assembly | $100.45 | Add To Cart |
| - | 603150 - Brake Pad Kit | $44.07 | Add To Cart |
| 14 | 247130 - Carriage Bolt | $0.82 | Add To Cart |
| 15 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 16 | 644539 - Brake Linkage Rod | $138.75 | Add To Cart |
| 17 | 732617 - Brake Pivot Mount | $10.26 | Add To Cart |
| 18 | 253200 - Whiz Bolt | $1.98 | Add To Cart |
| 19 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 20 | 644035 - 700/900 Brake Lever | Call for Details | |
| 21 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 22 | 645010 - Brake Linkage Arm | $33.75 | Add To Cart |
| 23 | 265537 - Clevis Yoke | $10.94 | Add To Cart |
| 24 | 254441 - Nut | $0.26 | Add To Cart |
| 25 | 780158 - Brake Linkage Rod | $8.66 | Add To Cart |
| 26 | 265615 - Righthand Thread Ball Joint | $6.52 | Add To Cart |
| 27 | 880926 - .312 Brake Linkage Pin | $7.10 | Add To Cart |
| 28 | 260606 - Cotter Ring | $0.48 | Add To Cart |
| 29 | 243030 - Hex Bolt | $0.60 | Add To Cart |
| 30 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 31 | 257040 - Washer | $2.60 | Add To Cart |
| 32 | 902280 - Spacer | $5.86 | Add To Cart |
| 33 | 183894 - Brake Interlock Switch | $10.03 | Add To Cart |
| 34 | 261284 - Clevis Pin | $1.47 | Add To Cart |
| 35 | 257020 - Washer | $0.24 | Add To Cart |
| 36 | 253038 - Whiz Nut | $0.50 | Add To Cart |
| 37 | 881130 - Brake Lever Spacer | Call for Details | |
| 38 | 257063 - Washer | $0.36 | Add To Cart |
| 39 | 257030 - Washer | $0.38 | Add To Cart |
| 40 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 41 | 782851 - 700 Series Brake Strap | $6.52 | Add To Cart |
| 42 | 243195 - Hex Flange Whiz Bolt | $0.53 | Add To Cart |
