928D2 • Drive Assembly

2004

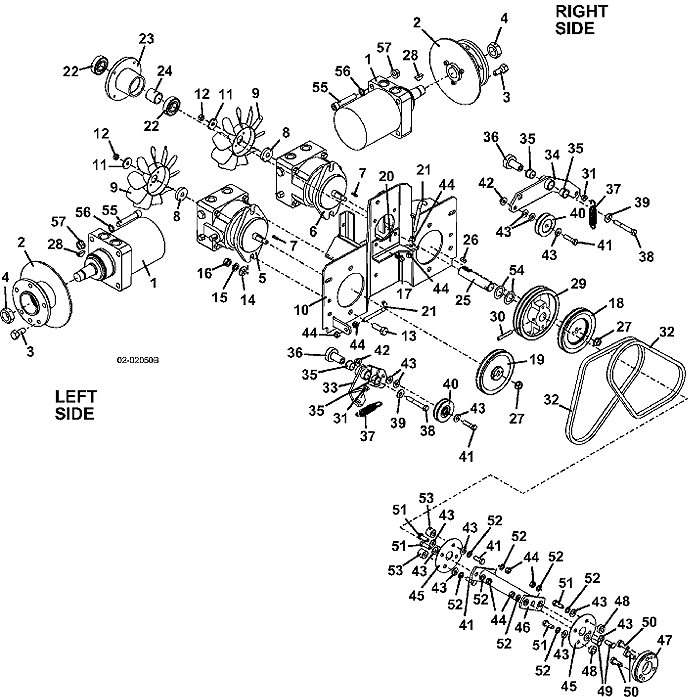

Drive Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

WHEEL MOTOR with HUB

603604

2

BOLT ON ROTOR WHEEL HUB

604440

-

SOCKET HEAD SCREW

259592

-

8.0 BRAKE ROTOR

775192

3

LUG BOLT

248565

4

NUT

254522

5

left HYDRO PUMP

391452

6

right HYDRO PUMP

391453

7

RECTANGLE KEY

281562

8

10A FAN HUB MOUNT

885123

9

clockwise 7" NYLON FAN

320857

10

900 DRIVE MOUNT

644630

11

WASHER

774020

12

NUT

254452

13

HEX BOLT

243570

14

WASHER

257062

15

LOCK WASHER

257432

16

NUT

254470

17

WHIZ HEX FLANGE BOLT

253192

18

SHEAVE

415021

19

SHEAVE

415022

20

928 SPRING BRACKET

725028

21

IDLER ADJUSTMENT J BOLT

730391

22

25MM BALL BEARING

110081

23

VAC FAN SPINDLE HOUSING

320522

24

DRIVE BEARING SPACER

903650

25

700G2 DRIVE SHAFT

882052

26

SQUARE KEY

281580

27

FLANGE NUT

253060

28

WOODRUFF KEY

281860

29

SHEAVE

415038

30

ROLL PIN

261061

31

NYLON BEARING

422520

32

BELT

381540

33

IDLER ARM ASSEMBLY

824491

34

IDLER ARM ASSEMBLY

824490

35

OILITE BEARING

121756

36

PEDESTAL BEARING

121650

37

EXTENSION SPRING with SWIVEL

283819

38

HEX BOLT

243360

39

WASHER

257040

40

IDLER

604449

41

HEX BOLT

243340

42

WHIZ NUT

253043

43

WASHER

257030

44

NUT

254450

45

FLEX COUPLING DISC

821530

46

COUPLING CONNECTOR

644153

47

COUPLING ADAPTER

885285

48

COUPLING SPACER

902318

49

HEX BOLT

830040

50

M10 SOCKET HEAD SCREW

270085

51

HEX BOLT

243330

52

LOCK WASHER

257412

53

G2 DRIVE SPACER

902328

54

WASHER

257106

55

SOCKET HEAD SCREW

259640

56

STAR INTERNAL WASHER

257430

57

WHIZ NUT

253066

return to 928d2 index return to top of page
