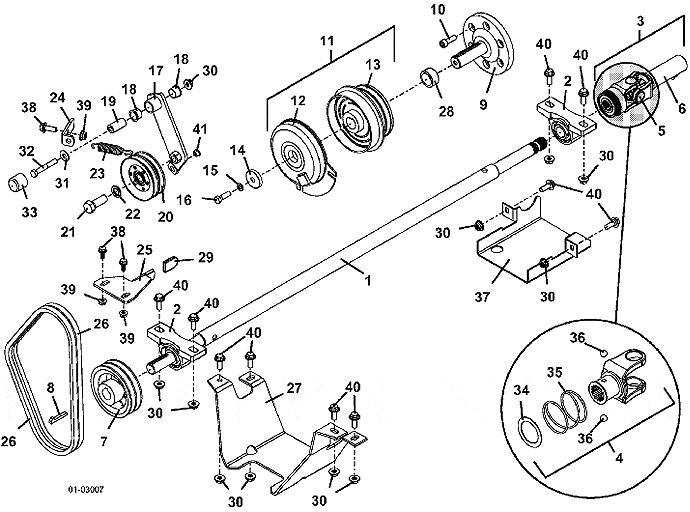

930D2 PTO Shaft & Clutch Assembly - 2008
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643730 - Power Shaft | $191.30 | Add To Cart |
| 2 | 122044 - Pillowblock SC Bearing | $19.37 | Add To Cart |
| 3 | 398914 - UN Half Sleeve | $251.45 | Add To Cart |
| 4 | 401019 - QD Splined Yoke | $118.05 | Add To Cart |
| 5 | 121010 - Cross Bearing | $40.49 | Add To Cart |
| 6 | 401017 - Yoke w/Sleeve | $251.45 | Add To Cart |
| 7 | 415620 - Sheave | $60.20 | Add To Cart |
| 8 | 281588 - Gib Square Key | $8.44 | Add To Cart |
| 9 | 824641 - Clutch Stub Shaft | $206.48 | Add To Cart |
| 10 | 270085 - M10 Socket Head Screw | $3.46 | Add To Cart |
| 11 | 388771 - 1.125 Plg Hdbrg SBrake Clutch (includes items #12 & #13) | $365.25 | Add To Cart |
| 12 | - - Field Assembly w/Brake - NOT AVAILABLE | Call for Details | |
| 13 | - - Armature & Rotor Assembly - NOT AVAILABLE | Call for Details | |
| 14 | 883803 - Washer | $2.23 | Add To Cart |
| 15 | 257412 - Lock Washer | $0.26 | Add To Cart |
| 16 | 243337 - Hex Bolt GR 8 | $1.58 | Add To Cart |
| 17 | 824497 - PTO 928 Idler Arm | $57.85 | Add To Cart |
| 18 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 19 | 881105 - Pivot Shaft Bearing | $10.72 | Add To Cart |
| 20 | 415610 - Sheave | $57.59 | Add To Cart |
| 21 | 243805 - Hex Bolt | $2.89 | Add To Cart |
| 22 | 257452 - Lock Washer | $0.96 | Add To Cart |
| 23 | 283819 - Extension Spring w/Swivel | $4.70 | Add To Cart |
| 24 | 732524 - Idler Spring Bracket | $9.88 | Add To Cart |
| 25 | 725102 - 928 Anti-Rotation Bracket | $16.32 | Add To Cart |
| 26 | 381914 - Belt | $57.52 | Add To Cart |
| 27 | 725303 - 900 Sheave Guard | $78.05 | Add To Cart |
| 28 | 902586 - Spacer | $12.54 | Add To Cart |
| 29 | 422088 - Clutch Bracket Cover | $1.68 | Add To Cart |
| 30 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 31 | 257040 - Washer | $2.60 | Add To Cart |
| 32 | 243355 - Hex Bolt | $1.95 | Add To Cart |
| 33 | 422098 - 1.125 ID Vinyl Cap | $1.68 | Add To Cart |
| 34 | 263660 - External Retainer | $7.51 | Add To Cart |
| 35 | 283525 - Compression Spring | $4.45 | Add To Cart |
| 36 | 300014 - Steel Ball | $3.71 | Add To Cart |
| 37 | 729287 - PTO Shaft Shield | $44.14 | Add To Cart |
| 38 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 39 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 40 | 253203 - Whiz Flange Bolt | $15.35 | Add To Cart |
| 41 | 422520 - Nylon Bearing | $1.47 | Add To Cart |
| 42 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 43 | 257040 - Washer | $2.60 | Add To Cart |
| - | 254450 - Nut | $0.38 | Add To Cart |
| - | 257412 - Lock Washer | $0.26 | Add To Cart |
