Gemini • Hydraulic Lift Assembly
serial numbers 5299999 and below

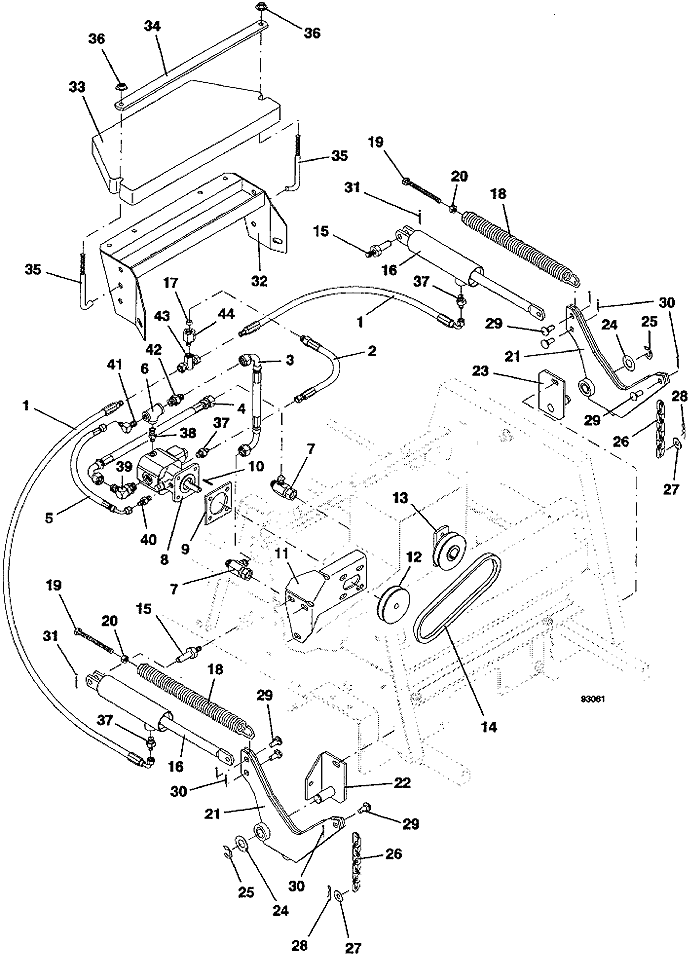

Hydraulic Lift Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hose Assembly

424306

2

Hose Assembly

424300

3

Hose Assembly

424330

4

Hose Assembly

424334

5

Hose Assembly

424302

6

Reducer Tee

366115

7

Tee Flare

366910

8

Clockwise Hydraulic Pump with Solenoid Valve

290072

-

Hydraulic Solenoid Valve

144950

9

Hydraulic Pump Spacer

775049

10

Square Key

281540

11

Hydraulic Pump Mount

643278

12

Hydraulic Pump Sheave

831436

13

Coupling Hub with Sheave

824551

14

Belt

381883

15

Cylinder Mount Pin with Groove

887119

16

Hydraulic Cylinder

290021

17

Flow Restrictor

780507

18

Spring & Plug Nut Assembly

604762

19

Hex Bolt

243361

20

Nut

254450

21

Hydraulic Lift Rocker

603716

22

right 900 Lift Pivot

644517

23

left 900 Lift Pivot

644518

24

18 Ga Bushing Washer

257092

25

External Retainer

263529

26

Lift Chain with 6 Links

820322

27

Washer

257040

28

Hair Pin

260523

29

Clevis Pin

261339

30

Cotter Pin

260648

31

Cotter Pin

260652

32

Weight Mount

643915

33

50 lb. Counterweight

503218

34

50 lb. Weight Cover

729691

35

Hook Bolt

240151

36

Whiz Nut

253043

37

O-Ring Adapter

360052

38

O-Ring Adapter

360040

39

O-Ring Adapter

360060

40

O-Ring Adapter

360050

41

Flare Adapter

360025

42

Flare Adapter

360015

43

Swivel Tee Adapter

360005

44

O-Ring Adapter

360045
