Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

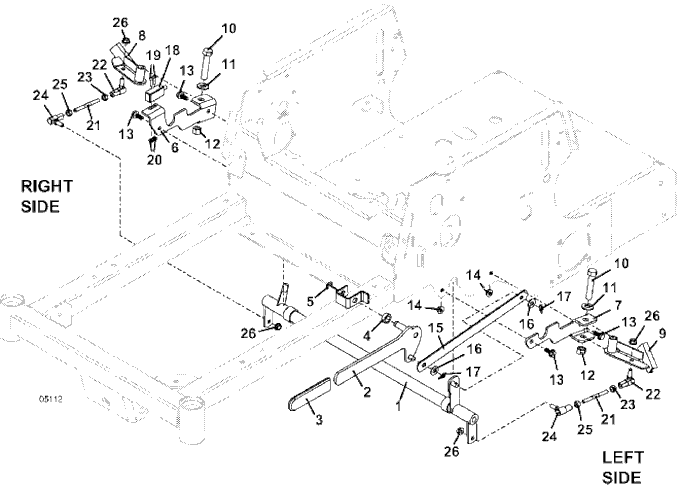

120K • Brake & Linkage Assembly

2006

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M2 Brake Tube

644647

2

100 Brake Pedal Arm

644044

3

Handle Grip

422155

4

Spacer

902314

5

External Retainer

263500

6

right M2 Brake Support Bracket

724664

7

left M2 Brake Support Bracket

724665

8

right M2 Brake Arm

644398

9

left M2 Brake Arm

644399

10

Hex Bolt

243590

11

Washer

257062

12

Lock Nut

253930

13

Hex Flange Whiz Bolt

253192

14

Whiz Nut

253035

15

100 Brake Strap

726031

16

Washer

257030

17

Cotter Ring

260606

18

Brake Interlock Switch

183894

19

Machine Screw

250258

20

Whiz Nut

253020

21

Left/Right Thread Linkage Rod

780159

22

Righthand Thread Ball Joint

265615

23

Nut

254441

24

Lefthand Thread Ball Joint

265616

25

Nut

254444

26

Whiz Nut

253038
