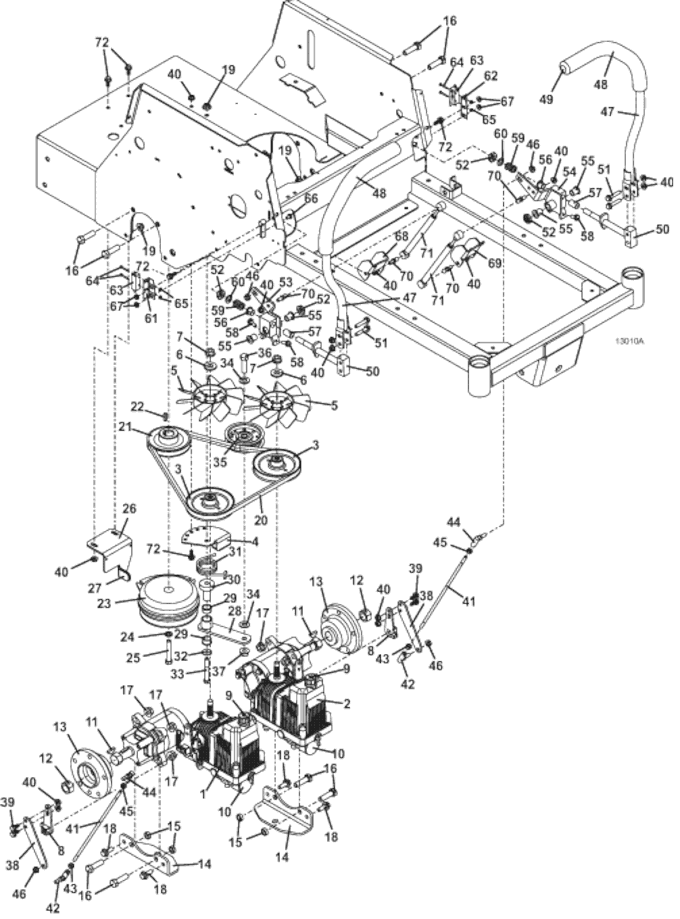

124 Drive & Steering Assembly Serial #6915953 & Above for 41' Decks - 2019
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391491 - Rt Integrated Transmission | $1261.15 | Add To Cart |
| 2 | 391490 - Lt Integrated Transmission | $1261.15 | Add To Cart |
| 3 | 130631 - Pulley | $24.40 | Add To Cart |
| 4 | 729733 - Belt Tensioner Bracket | $12.90 | Add To Cart |
| 5 | 130431 - H2 & T Hydro Fan | $39.78 | Add To Cart |
| 6 | 130633 - Fan Retainer Washer | Call for Details | |
| 7 | 253070 - Flanged Nut | $7.68 | Add To Cart |
| 8 | 130618 - Control Lever | $28.86 | Add To Cart |
| - | 130619 - Return Spring | $16.00 | Add To Cart |
| 9 | 130610 - Breather/Dipstick | $59.28 | Add To Cart |
| - | 130611 - Seal Ring | $0.50 | Add To Cart |
| 10 | 130605 - Filter | $29.44 | Add To Cart |
| - | 126552 - O-Ring | $2.10 | Add To Cart |
| - | 130606 - Filter Plug w/O-Ring | $20.99 | Add To Cart |
| 11 | 281845 - Woodruff Key | $1.36 | Add To Cart |
| 12 | 253992 - Lock Nut | $0.80 | Add To Cart |
| 13 | 824458 - Tapered Hub | Call for Details | |
| 14 | 776156 - Tension Strap Bracket | Call for Details | |
| 15 | 902293 - Integrated Spacer | $3.00 | Add To Cart |
| 16 | 243575 - Hex Bolt | $1.90 | Add To Cart |
| 17 | 253067 - Flange Spiral Lock Nut | $2.23 | Add To Cart |
| 18 | 253203 - Flange Whiz Bolt | $15.35 | Add To Cart |
| 19 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 20 | 381938 - Belt | $30.61 | Add To Cart |
| 21 | 415545 - Sheave | $60.58 | Add To Cart |
| 22 | 281582 - Square Key | $1.99 | Add To Cart |
| 23 | 388750 - Electric Clutch 1' Shaft | $321.94 | Add To Cart |
| 24 | 257422 - Lock Washer | $0.48 | Add To Cart |
| 25 | 243470 - Hex Bolt | $2.31 | Add To Cart |
| 26 | 725123 - 100 Anti Rotation Bracket | $20.86 | Add To Cart |
| 27 | 422088 - Clutch Bracket Cover | $1.68 | Add To Cart |
| 28 | 824478 - Idler Arm Assembly | $32.20 | Add To Cart |
| 29 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 30 | 121650 - Pedestal Bearing | $8.82 | Add To Cart |
| 31 | 284428 - Torsion Spring | $7.18 | Add To Cart |
| 32 | 257040 - Washer | $2.60 | Add To Cart |
| 33 | 243360 - Hex Bolt | $1.90 | Add To Cart |
| 34 | 257062 - Washer | $0.38 | Add To Cart |
| 35 | 393195 - Idler | $27.56 | Add To Cart |
| 36 | 243575 - Hex Bolt | $1.90 | Add To Cart |
| 37 | 253066 - Whiz Nut | $1.03 | Add To Cart |
| 38 | 776158 - Neutral Return Arm | Call for Details | |
| 39 | 253191 - Flange Whiz Hex Bolt | $5.20 | Add To Cart |
| 40 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 41 | 780175 - Steering Linkage Rod | $14.95 | Add To Cart |
| 42 | 265615 - Righthand TD Ball Joint | $6.52 | Add To Cart |
| 43 | 254441 - Nut | $0.26 | Add To Cart |
| 44 | 265616 - Lefthand TD Ball Joint | $6.52 | Add To Cart |
| 45 | 254444 - Nut | $0.60 | Add To Cart |
| 46 | 253038 - Whiz Nut | $0.50 | Add To Cart |
| 47 | 605745 - M2 Steering Lever Assembly | Call for Details | |
| 48 | 422179 - Handle Grip | Call for Details | |
| 49 | 422095 - .75 ID Vinyl Cap | Call for Details | |
| 50 | 643926 - Steering Lever Adjustment Mount | $33.48 | Add To Cart |
| 51 | 253195 - Flange Whiz Hex Bolt | $1.36 | Add To Cart |
| 52 | 253470 - Nylon Insert Nut | $0.72 | Add To Cart |
| 53 | 604856 - Rt Steering Pivot Assembly | Call for Details | |
| 54 | 604857 - Lt Steering Pivot Assembly | Call for Details | |
| 55 | 422559 - Sleeve Bearing w/Flange | $2.39 | Add To Cart |
| 56 | 422556 - Sleeve Bearing w/Flange | $2.06 | Add To Cart |
| 57 | 422557 - Sleeve Bearing | $2.14 | Add To Cart |
| 58 | 243197 - Hex Bolt | $1.58 | Add To Cart |
| 59 | 283324 - Compression Spring | $1.99 | Add To Cart |
| 60 | 257063 - Washer | $0.36 | Add To Cart |
| 61 | 720160 - Rt Steering Switch Mount | $5.53 | Add To Cart |
| 62 | 720161 - Lt Steering Switch Mount | $5.53 | Add To Cart |
| 63 | 183860 - Lever Switch | $11.86 | Add To Cart |
| 64 | 250318 - Machine Screw | Call for Details | |
| 65 | 254400 - Nut | Call for Details | |
| 66 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 67 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 68 | 729730 - Rt Damper Mount Bracket | Call for Details | |
| 69 | 729731 - Lt Damper Mount Bracket | Call for Details | |
| 70 | 265680 - Ball Stud | $4.12 | Add To Cart |
| 71 | 285032 - Reverse Damper w/Ball Socket | $47.90 | Add To Cart |
| 72 | 253192 - Flange Whiz Hex Bolt | $1.01 | Add To Cart |
