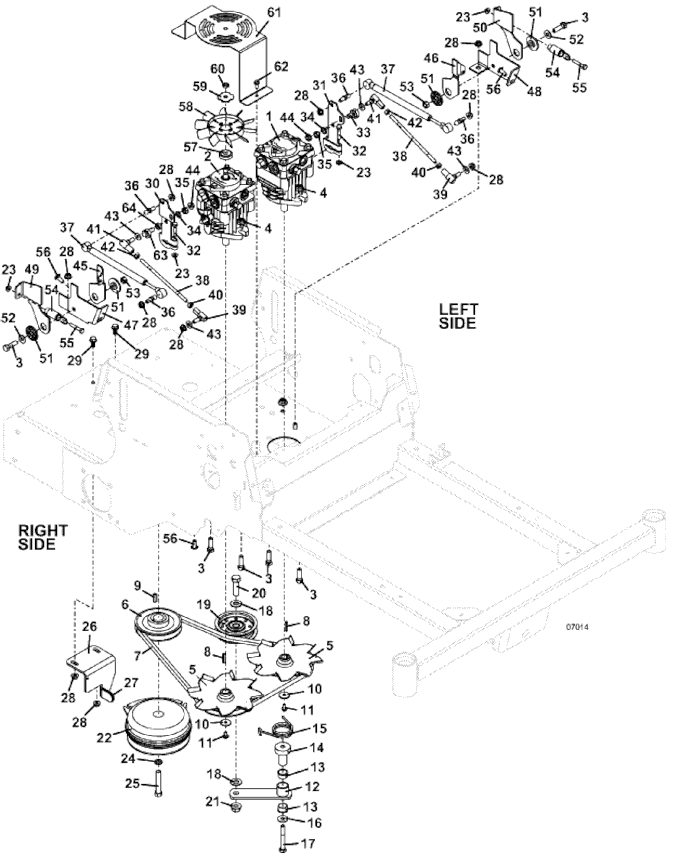

124 Drive Assembly - M2/52 - 2010
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 391438 - H3 Left Hydro Pump | $965.45 | Add To Cart |
| 2 | 391440 - H3 Right Hydro Pump with Thru Shaft | $602.65 | Add To Cart |
| 3 | 243335 - Hex Bolt | $0.96 | Add To Cart |
| 4 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 5 | 415555 - Sheave | $124.31 | Add To Cart |
| 6 | 415545 - Sheave | $60.58 | Add To Cart |
| 7 | 381940 - Belt | $31.07 | Add To Cart |
| 8 | 281560 - Square Key | $1.16 | Add To Cart |
| 9 | 281582 - Square Key | $1.99 | Add To Cart |
| 10 | 774012 - Flat Washer | $4.29 | Add To Cart |
| 11 | 270821 - Hex Bolt | $1.47 | Add To Cart |
| 12 | 824478 - 100 Pumps Idler Arm Assembly | $32.20 | Add To Cart |
| 13 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 14 | 121650 - Pedestal Bearing | $8.82 | Add To Cart |
| 15 | 284426 - Torsion Spring | $5.11 | Add To Cart |
| 16 | 257040 - Washer | $2.60 | Add To Cart |
| 17 | 243360 - Hex Bolt | $1.90 | Add To Cart |
| 18 | 257062 - Washer | $0.38 | Add To Cart |
| 19 | 393195 - Idler | $27.56 | Add To Cart |
| 20 | 243575 - Hex Bolt | $1.90 | Add To Cart |
| 21 | 253066 - Whiz Nut | $1.03 | Add To Cart |
| 22 | 388750 - 1 inch Shaft Electric Clutch | $321.94 | Add To Cart |
| 23 | 253025 - Whiz Nut | $0.36 | Add To Cart |
| 24 | 257422 - Lock Washer | $0.48 | Add To Cart |
| 25 | 243470 - Hex Bolt | $2.31 | Add To Cart |
| 26 | 725123 - 100 Anti Rotation Bracket | $20.86 | Add To Cart |
| 27 | 422088 - Clutch Bracket Cover | $1.68 | Add To Cart |
| 28 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 29 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 30 | 754257 - M2 52 right Control Arm | $35.10 | Add To Cart |
| 31 | 754259 - M2 left Control Arm | $24.89 | Add To Cart |
| 32 | 253182 - Hex Whiz Bolt | $0.60 | Add To Cart |
| 33 | 603726 - Eccentric Roller Assembly | $17.55 | Add To Cart |
| 34 | 257410 - External Star Washer | $0.38 | Add To Cart |
| 35 | 254450 - Nut | $0.38 | Add To Cart |
| 36 | 265680 - Ball Stud | $4.12 | Add To Cart |
| 37 | 285031 - Damper | $46.21 | Add To Cart |
| 38 | 780169 - left/right Steering Linkage | $10.75 | Add To Cart |
| 39 | 265615 - Righthand Thread Ball Joint | $6.52 | Add To Cart |
| 40 | 254441 - Nut | $0.26 | Add To Cart |
| 41 | 265616 - Lefthand Thread Ball Joint | $6.52 | Add To Cart |
| 42 | 254444 - Nut | $0.60 | Add To Cart |
| 43 | 257020 - Washer | $0.24 | Add To Cart |
| 44 | 253038 - Whiz Nut | $0.50 | Add To Cart |
| 45 | 729398 - Neutral Return Arm | $15.99 | Add To Cart |
| 46 | 729399 - Front left Neutral Return Arm | Call for Details | |
| 47 | 754246 - M2 right Neutral Return Mount | Call for Details | |
| 48 | 754247 - M2 left Neutral Return Mount | $15.00 | Add To Cart |
| 49 | 729396 - right rear Neutral Return Arm | $16.64 | Add To Cart |
| 50 | 729397 - left rear Neutral Return Arm | Call for Details | |
| 51 | 822304 - Neutral Return Pivot Bearing | $4.29 | Add To Cart |
| 52 | 257030 - Washer | $0.38 | Add To Cart |
| 53 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 54 | 283823 - Extension Spring | $2.23 | Add To Cart |
| 55 | 243035 - Hex Bolt | $0.60 | Add To Cart |
| 56 | 253190 - Whiz Truss Bolt | $1.47 | Add To Cart |
| 57 | 130430 - H2 Fan Hub | $11.48 | Add To Cart |
| 58 | 130429 - Fan | Call for Details | |
| 59 | 130432 - Fan Retainer Washer | $20.54 | Add To Cart |
| 60 | 253461 - Nylon Insert Nut | $2.23 | Add To Cart |
| 61 | 723415 - 124/52 Pump Shield | $52.13 | Add To Cart |
| 62 | 253173 - Hex Whiz Bolt | $0.77 | Add To Cart |
| 63 | 603731 - Eccentric Solid Roller Assembly | $23.05 | Add To Cart |
| 64 | 902277 - Eccentric Roller Spacer | $6.30 | Add To Cart |
