Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

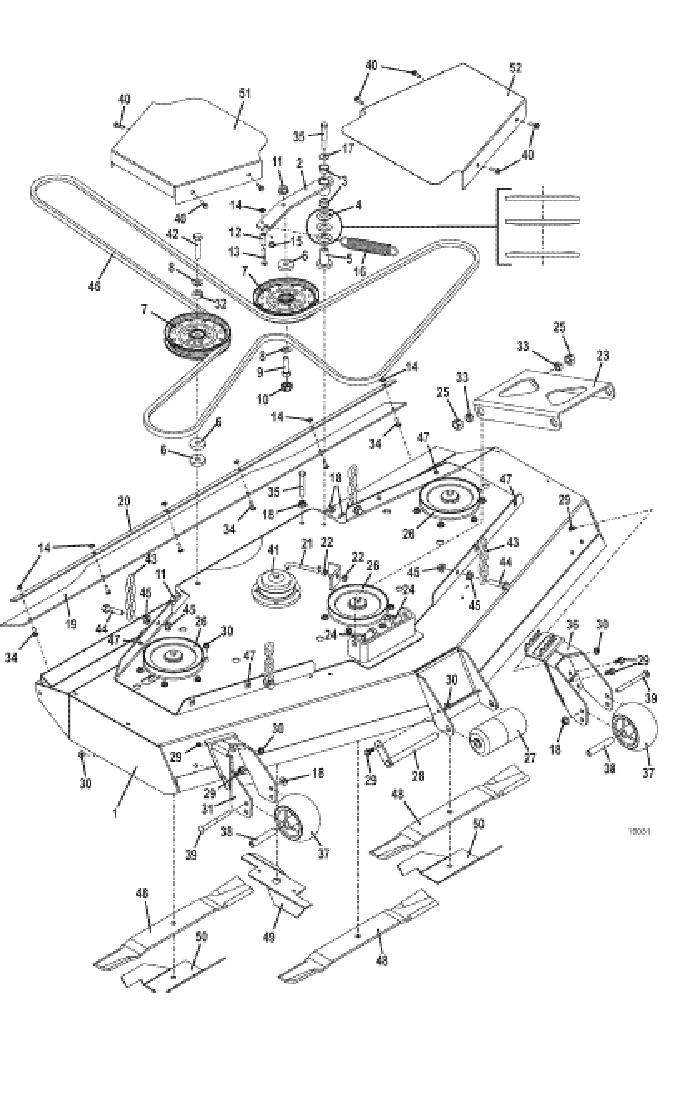

126 • Rear Discharge Deck Assembly 126/61

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

100V/61R Deck

645195

2

Idler Arm Assembly

824462

3

Oilite Bearing

121756

4

Spring Washer

257319

5

Pedestal Bearing

121651

6

Washer

257160

7

Idler

393250

8

Washer

257062

9

Hex Bolt

243575

10

Idler Arm Stabilizer Cap

423670

11

Flange Spiral Lock Nut

253067

12

Guide Tube

784057

13

Hex Bolt

243038

14

Whiz Nut

253025

15

Nylon Bearing

422520

16

Extension Spring

283848

17

Washer

257040

18

Whiz Nut

253043

19

Flap Deck

424154

20

Flap Strap

782364

21

Idler Adjustment J Bolt

730391

22

Nut

254450

23

100V/61 Radius Arm

776218

24

Hex Bolt

243795

25

Lock Nut

253970

26

Sheave

415892

27

2-Piece Center Roller Assembly

603725

28

Roller Lock Pin

644512

29

Hex Flange Whiz Bolt

253192

30

Whiz Nut

253035

31

Anti-Scalp Roller Mount Rt Rear Deck

645581

32

Spacer

902313

33

Axle Spacer

902422

34

Truss Whiz Bolt

253177

35

Hex Bolt

243360

36

Left Anti-Scalp Roller Mount

645589

37

Snti-Scalp Center Hub Wheel

484230

38

Bearing Tube

942137

39

Carriage Bolt

247310

40

Hex Bolt

253175

41

Flat Sheave

415010

42

Hex Bolt

243590

43

5 Links M1 Chain

820331

44

Hex Bolt GR 8

243458

45

Whiz Nut

253058

46

Belt

382101

47

Speed Nut

254431

48

21 Med Lift Blade

320242

49

Grassthrower

766026

50

Grassthrower

766025

51

Belt 100/61 Rt Shield

751055

52

Belt 100/61 Lt Shield

751056

Return to 126 Index Return to Top
