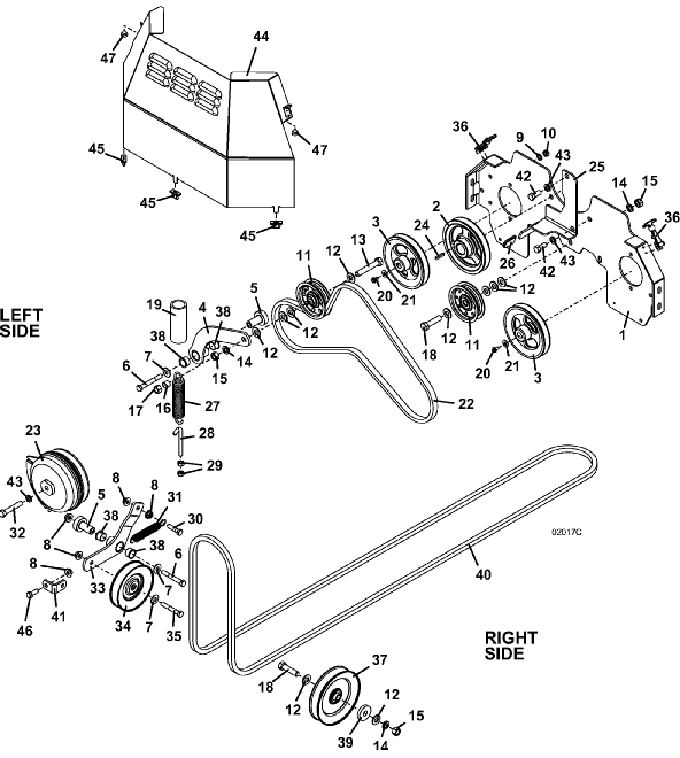

220/225 Drive Assembly 220 & 225 - 2004
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644634 - Pump Plate 200 w/Fans | Call for Details | |
| 2 | 415888 - Sheave | $48.23 | Add To Cart |
| 3 | 415882 - Sheave | $63.05 | Add To Cart |
| 4 | 824485 - Idler Arm - M1 Pumps | $58.89 | Add To Cart |
| 5 | 121650 - Pedestal Bearing .750 x 1.5 | $8.82 | Add To Cart |
| 6 | 243365 - Hex Bolt .375-16 x 3 | $1.83 | Add To Cart |
| 7 | 257040 - Washer | $2.60 | Add To Cart |
| 8 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 9 | 257412 - Lock Washer | $0.26 | Add To Cart |
| 10 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 11 | 393195 - Idler Pulley | $27.56 | Add To Cart |
| 12 | 257062 - Washer | $0.38 | Add To Cart |
| 13 | 243601 - Hex Bolt | $3.96 | Add To Cart |
| 14 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 15 | 254470 - Nut | $0.62 | Add To Cart |
| 16 | 422558 - Nylon Bearing | $1.36 | Add To Cart |
| 17 | 253930 - Lock Nut | $1.10 | Add To Cart |
| 18 | 243580 - Hex Bolt | $2.14 | Add To Cart |
| 19 | 822686 - Clear Tubing | $9.96 | Add To Cart |
| 20 | 270821 - Hex Bolt | $1.47 | Add To Cart |
| 21 | 257019 - Flat Washer | $0.48 | Add To Cart |
| 22 | 382034 - Belt | $43.03 | Add To Cart |
| 23 | 388740 - Electric Clutch | $394.16 | Add To Cart |
| 24 | 281582 - Square Key | $1.99 | Add To Cart |
| 25 | 755125 - Anti Rotation Bracket M1 | $32.96 | Add To Cart |
| 26 | 422088 - Clutch Bracket Cover | $1.68 | Add To Cart |
| 27 | 604776 - Spring Assembly | $16.25 | Add To Cart |
| 28 | 730391 - Idler Adjustment J Bolt | $3.28 | Add To Cart |
| 29 | 254450 - Nut | $0.38 | Add To Cart |
| 30 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 31 | 283820 - Extension Spring with Swivel | $4.62 | Add To Cart |
| 32 | 243470 - Hex Bolt | $2.31 | Add To Cart |
| 33 | 824486 - Mule Drive Idler Arm | $53.30 | Add To Cart |
| 34 | 393376 - Idler | $36.27 | Add To Cart |
| 35 | 243355 - Hex Bolt | $1.95 | Add To Cart |
| 36 | 281301 - Rubber Draw Latch | $15.73 | Add To Cart |
| 37 | 393390 - Idler Pulley | $35.29 | Add To Cart |
| 38 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 39 | 883804 - Washer | $2.14 | Add To Cart |
| 40 | 382085 - Belt | $75.04 | Add To Cart |
| - | 382095 - Belt | $101.03 | Add To Cart |
| 41 | 732520 - Idler Spring Bracket M1 | $9.50 | Add To Cart |
| 42 | 243445 - Hex Bolt | $1.08 | Add To Cart |
| 43 | 257422 - Lock Washer | $0.48 | Add To Cart |
| 44 | 604755 - M1 225 Rear Shield Assembly | $175.35 | Add To Cart |
| 45 | 422090 - Rear Belt Shield Isolator | $1.30 | Add To Cart |
| 46 | 243330 - Hex Bolt | $0.51 | Add To Cart |
| 47 | 424015 - Rubber Bumper | $2.10 | Add To Cart |
