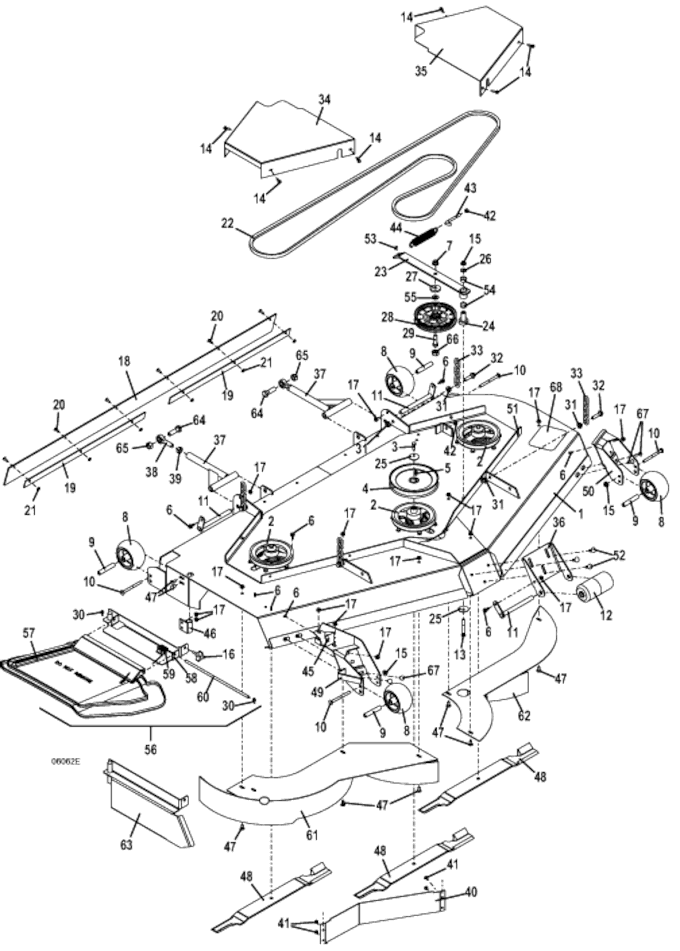

223 / 227 M172 Deck - 2012
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644161 - M172/07 Deck Weldment | $3058.20 | Add To Cart |
| 2 | 414745 - Sheave | $78.26 | Add To Cart |
| 3 | 243331 - Hex Bolt .375-24 x 1 | $1.10 | Add To Cart |
| 4 | 415894 - Sheave | $167.38 | Add To Cart |
| 5 | 281582 - Square Key .250 x .875 | $1.99 | Add To Cart |
| 6 | 253192 - Flange Whiz Hex Bolt | $1.01 | Add To Cart |
| 7 | 253067 - Flange Spiral Lock Nut | $2.23 | Add To Cart |
| 8 | 484230 - Anti-Scalp Wheel Center Hub 5 x 2.75 | $13.91 | Add To Cart |
| 9 | 942137 - Bearing Tube | $11.55 | Add To Cart |
| 10 | 247310 - Carriage Bolt | $3.15 | Add To Cart |
| 11 | 644512 - Roller Lock Pin | $11.70 | Add To Cart |
| 12 | 603725 - 2 Piece Center Roller Assembly | $15.12 | Add To Cart |
| 13 | 243365 - Hex Bolt .375-16 x 3 | $1.83 | Add To Cart |
| 14 | 253175 - Whiz Hex Bolt | $4.05 | Add To Cart |
| 15 | 253043 - Whiz Nut .375-16 | $0.84 | Add To Cart |
| 16 | 252821 - 3 Prong Deck Screw | $5.99 | Add To Cart |
| 17 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 18 | 424206 - M1 72' Deck Flap | $26.05 | Add To Cart |
| 19 | 774337 - 220S 61 Inch Deflector Strap | $20.34 | Add To Cart |
| 20 | 253181 - Bolt | $0.40 | Add To Cart |
| 21 | 253025 - Whiz Nut .250-20 | $0.36 | Add To Cart |
| 22 | 382098 - Belt | $106.95 | Add To Cart |
| 23 | 824494 - M172 Idler Arm Assembly | $49.20 | Add To Cart |
| 24 | 121650 - Pedestal Bearing .750 x 1.5 | $8.82 | Add To Cart |
| 25 | 257041 - Cupped Washer | $2.54 | Add To Cart |
| 26 | 257040 - Washer | $2.60 | Add To Cart |
| 27 | 257160 - Washer | $2.14 | Add To Cart |
| 28 | 393250 - Idler | $52.71 | Add To Cart |
| 29 | 243575 - Hex Bolt | $1.90 | Add To Cart |
| 30 | 260608 - Cotter Ring | $0.48 | Add To Cart |
| 31 | 253058 - Whiz Nut .437-14 | $0.84 | Add To Cart |
| 32 | 243458 - Flange Bolt .437-14 x 1.75 GR 8 | $3.63 | Add To Cart |
| 33 | 820331 - Chain - 5 Links M1 | $9.80 | Add To Cart |
| 34 | 723330 - M172 Right Belt Shield | $85.70 | Add To Cart |
| 35 | 723331 - M172 Left Belt Shield | $85.70 | Add To Cart |
| 36 | 755071 - Roller Mount | $41.08 | Add To Cart |
| 37 | 604675 - Radius Arm Assembly - 255-61 | $71.47 | Add To Cart |
| 38 | 265665 - Rod End | $19.04 | Add To Cart |
| 39 | 254493 - Nut .625-18 | $1.26 | Add To Cart |
| 40 | 724590 - Auxiliary Front Shroud - 72 Inch Decks | $26.50 | Add To Cart |
| 41 | 253176 - Truss Whiz Bolt | $0.67 | Add To Cart |
| 42 | 254450 - Nut .375-16 | $0.38 | Add To Cart |
| 43 | 730391 - Idler Adjustment J Bolt | $3.28 | Add To Cart |
| 44 | 283848 - Extension Spring | $9.58 | Add To Cart |
| 45 | 254448 - Speed Nut | $2.31 | Add To Cart |
| 46 | 643632 - Pivot Vac Mount Housing | $14.82 | Add To Cart |
| 47 | 247130 - Carriage Bolt .312 x .75 | $0.82 | Add To Cart |
| 48 | 320253 - High Lift Notch Blade - 25' | Call for Details | |
| - | 320250 - Medium Lift Blade - 25' | Call for Details | |
| - | 320252 - Contour Blade - 25' | Call for Details | |
| - | 320254 - Extreme High Lift Blade - 25' | Call for Details | |
| - | 320255 - High-Low Mulch Blade - 25' | Call for Details | |
| - | 320319 - High Lift Notch Laser Edge Blade - 25' | Call for Details | |
| - | 320323 - Shredder Blade - 25' | Call for Details | |
| 49 | 645575 - Right Anti-Scalp Roller Mount | $136.27 | Add To Cart |
| 50 | 645579 - Left Anti-Scalp Roller Mount | $65.44 | Add To Cart |
| 51 | 254431 - Speed Nut | $1.64 | Add To Cart |
| 52 | 247253 - Carriage Bolt | $1.36 | Add To Cart |
| 53 | 422520 - Nylon Bearing | $1.47 | Add To Cart |
| 54 | 121756 - Oilite Bearing | $0.95 | Add To Cart |
| 55 | 257062 - Washer | $0.38 | Add To Cart |
| 56 | 604317 - Discharge Flex Shield Assembly | $95.85 | Add To Cart |
| 57 | 422042 - Discharge Flex Shield | $36.14 | Add To Cart |
| 58 | 644570 - Discharge Shield Mount | $55.19 | Add To Cart |
| 59 | 284406 - Torsion Spring | $2.89 | Add To Cart |
| 60 | 780650 - Discharge Flex Shield Pin | $15.99 | Add To Cart |
| 61 | 644612 - Right Mulch Plate | Call for Details | |
| 62 | 644613 - Left Mulch Plate | Call for Details | |
| 63 | 644058 - Mulch Plate End Cap | $77.40 | Add To Cart |
| 64 | 243810 - Hex Bolt | $3.55 | Add To Cart |
| 65 | 253970 - Lock Nut | $10.10 | Add To Cart |
| 66 | 423670 - Idler Arm Stabilizer Cap | $1.47 | Add To Cart |
| 67 | 247135 - Carriage Bolt | $0.96 | Add To Cart |
| 68 | 420904 - Foot Rest Extension Tread | $2.47 | Add To Cart |
