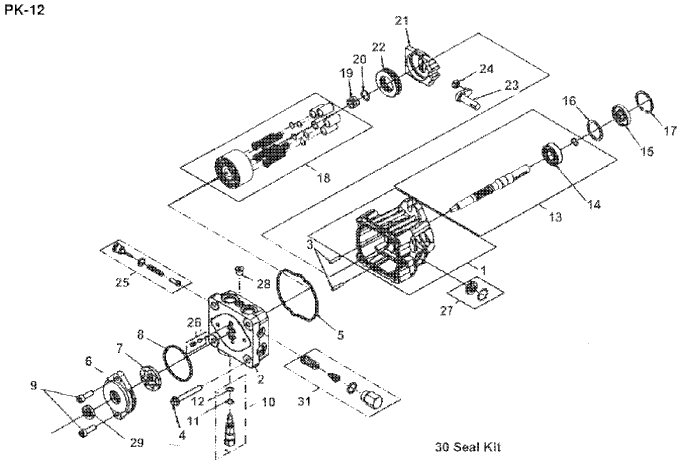

223 / 227 Pump Assembly - 2014
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 130052 - Housing Kit | $192.30 | Add To Cart |
| 2 | 130037 - End Cap Kit | Call for Details | |
| 3 | 130046 - Dowel Pin | $6.45 | Add To Cart |
| 4 | 271075 - Housing Bolt | $7.34 | Add To Cart |
| 5 | 130181 - Molded Seal Ring | $9.35 | Add To Cart |
| 6 | 130022 - Charge Pump Cover | $377.35 | Add To Cart |
| 7 | 130062 - Gerotor Set | Call for Details | |
| 8 | 130020 - Charge Cover Square Seal Ring | $7.90 | Add To Cart |
| 9 | 243205 - Hex Bolt | $0.67 | Add To Cart |
| 10 | Bypass Valve (NOT AVAILABLE) | Unavailable | |
| 11 | 130017 - Backup Ring | $6.93 | Add To Cart |
| 12 | 130018 - Bypass Valve O-Ring | $1.16 | Add To Cart |
| 13 | 130174 - Shaft and Bearing Kit W/ Thru Shaft | $302.20 | Add To Cart |
| 14 | 130078 - Input Bearing | $22.56 | Add To Cart |
| 15 | 125365 - Input Seal | $13.30 | Add To Cart |
| 16 | 130087 - Spacer | $2.30 | Add To Cart |
| 17 | 130090 - Retaining Ring | $1.26 | Add To Cart |
| 18 | 130153 - Block Kit | Call for Details | |
| 19 | 130014 - Block Spring | Call for Details | |
| 20 | 130218 - Block Thrust Washer | $2.45 | Add To Cart |
| 21 | 130182 - Swashplate | Call for Details | |
| 22 | 130013 - Thrust Bearing | $44.26 | Add To Cart |
| 23 | 130036 - Trunnion Arm | $81.00 | Add To Cart |
| 24 | 130065 - Guide Block | $6.85 | Add To Cart |
| 25 | 130156 - Check Valve Kit | $89.85 | Add To Cart |
| - | 130031 - Check Plug O-Ring | $1.82 | Add To Cart |
| 26 | 130019 - Charge Relief Kit | $13.15 | Add To Cart |
| 27 | 125355 - Trunnion Seal Kit | $14.90 | Add To Cart |
| 28 | 103739 - Straight Thread Plug | $13.26 | Add To Cart |
| 29 | 125164 - Block Kit | $18.07 | Add To Cart |
| 30 | 130175 - Thrust Bearing | $80.56 | Add To Cart |
| 31 | 130160 - Shock Valve Kit | $101.05 | Add To Cart |
