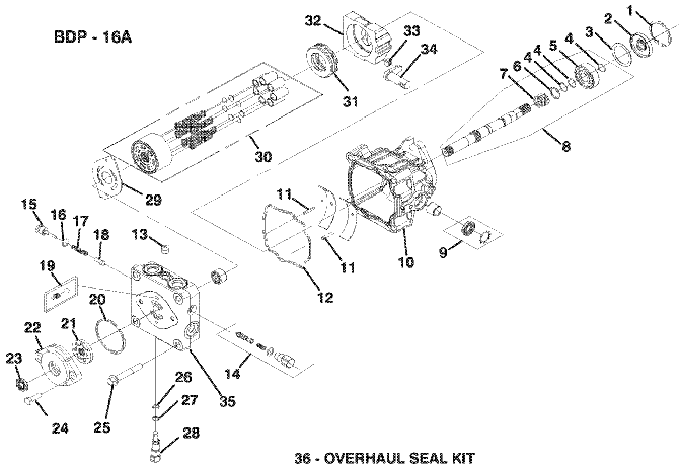

321D Pump Assembly - 2012

Pump Assembly

Click On a Part Number Below for Details

NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.


Item # Part Number - Description Price
1 130088 - Seal Retaining Ring Add To Cart
2 125363 - Input Seal Add To Cart
3 130086 - Spacer Add To Cart
4 130170 - Wire Retaining Ring Add To Cart
5 130080 - Input Bearing Add To Cart
6 130220 - Block Thrust Washer Add To Cart
7 130015 - Block Spring Add To Cart
8 130178 - Sub Shaft Assembly Call for Details
9 125357 - Trunnion Seal Kit Add To Cart
10 130054 - 16A Housing Kit Call for Details
11 130046 - Dowel Pin Add To Cart
12 130184 - Molded Seal Ring Add To Cart
13 103739 - O-Ring Boss Plug Add To Cart
14 130160 - Shock Valve Kit Add To Cart
15 130030 - Check Plug Add To Cart
16 130031 - O-Ring Check Plug Add To Cart
17 130157 - Poppet Spring Add To Cart
18 130155 - Poppet Add To Cart
19 130027 - Ball & Spring Assembly Add To Cart
20 130020 - Seal Ring Add To Cart
21 130060 - Gerotor Set Add To Cart
22 130022 - Charge Pump Cover Add To Cart
23 125165 - Seal Add To Cart
24 270078 - M8 Socket Head Screw Add To Cart
25 271080 - Flanged Hex Head Screw Call for Details
26 130018 - Bypass Valve O-Ring Add To Cart
27 130017 - Bypass Valve Backup Ring Add To Cart
28 000000 - NOT AVAILABLE Call for Details
29 130214 - Valve Plate Add To Cart
30 130152 - Block Kit Add To Cart
31 130008 - Thrust Bearing Add To Cart
32 000000 - NOT AVAILABLE Call for Details
33 130065 - Guide Block Add To Cart
34 130035 - Control Shaft Call for Details
35 130044 - End Cap Kit Call for Details
- 130048 - End Cap Kit w/out Plate Call for Details
36 130186 - Seal Kit Add To Cart
