Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

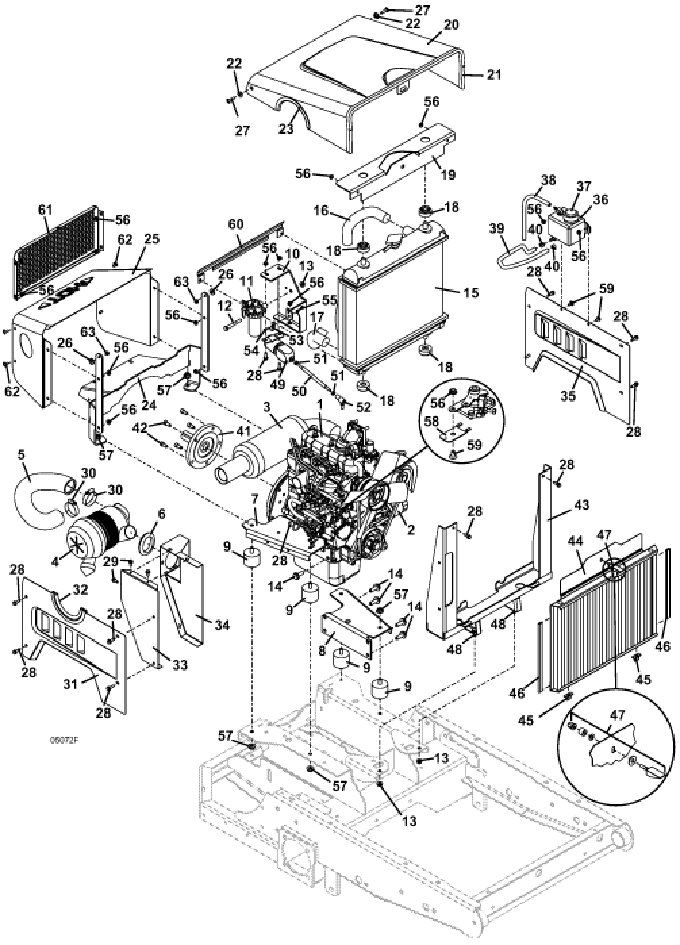

321D • Engine Assembly

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Kubota Diesel Engine

100176

2

Kubota Oil Filter

100800

3

Muffler & Gasket Assembly

603590

-

Kubota Flange Exhaust Gasket

101040

4

Air Cleaner

100208

-

Primary Air Filter - short

100942

-

Inner Air Filter - short

100943

5

721D Air Intake Hose

424527

6

Grommet

424297

7

Engine Mount - wide right

643322

8

Engine Mount - wide left

643323

9

Vibration Isolator

424078

10

Solenoid/Filter Mount

755121

11

Kubota Fuel Filter

101000

12

Whiz Bolt

253197

13

Whiz Nut

253035

14

Hex Bolt FL

271121

15

Kubota Radiator

101612

16

Upper Radiator Hose

101058

17

Lower Radiator Hose

101059

18

Radiator Isolator Bushing

101080

19

Radiator Clamp Channel

729327

20

721DT/321D W/A Engine Hood

645315

21

Hood Trim - front

822639

22

Step Bushing

422508

23

Seat Edge Trim

822630

24

321D Hood Support

644847

25

721DT Hood Box Panel

722932

26

Hood Hinge Spacer

901324

27

Bolt

253181

28

Hex Whiz Bolt

253175

29

Hex Whiz Bolt

253173

30

Screw-type Hose Clamp

280303

31

721D Right Hood Side

722928

32

Air Cleaner Trim Seal

822503

33

Intake Box Mount

644067

34

Intake Box Cover

644071

35

321D/721D Lt Hood Side

762520

36

Water Expansion Tank

421980

37

Reservoir Cap w/Gasket

421990

38

Clear Vent Hose

821748

39

Hose

821749

40

Spring Hose Clamp

280260

41

Clutch Stub Shaft

824637

42

M8 Socket Head Screw

270075

43

Radiator Mount

644672

44

Grille Assembly (with Guard)

604382

45

Rear Belt Shield Isolator

422090

46

Radiator Grille Trim

822636

47

Swell Latch Assembly

604805

48

Hex Whiz Flange Bolt

253192

49

Fuel Solenoid Assembly

603350

50

Fuel Solenoid Cable Assembly

603209

51

Nut

254434

52

Ball Joint

265610

53

Conduit Clip

180635

54

Machine Screw

250258

55

Whiz Nut

253020

56

Whiz Nut

253025

57

Whiz Nut

253043

58

Throttle Linkage Extension

723063

59

Whiz Truss Bolt

253176

60

Fan Shield

721006

61

Bolt In Grille Panel

721294

62

Bolt

253180

63

Nylon Insert Nut

253440
