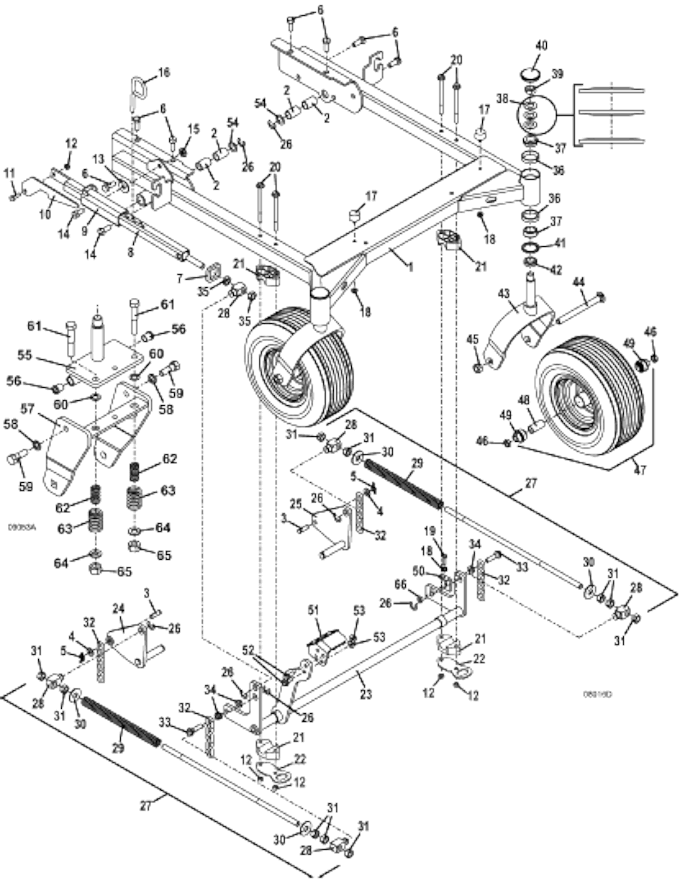

321D Deck Carrier Assembly - M148 & M152 - 2018
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 645150 - Extended Carrier | Call for Details | |
| - | 162187 - M1 Cutting Height Decal | $2.39 | Add To Cart |
| 2 | 422640 - Poly Bearing | $1.90 | Add To Cart |
| 3 | 261405 - Clevis Pin | $1.30 | Add To Cart |
| 4 | 257051 - Washer | $0.24 | Add To Cart |
| 5 | 260612 - Cotter Ring | $0.96 | Add To Cart |
| 6 | 243565 - Hex Bolt | $2.10 | Add To Cart |
| - | 253067 - Loc Spiral Flange Nut | $2.23 | Add To Cart |
| 7 | 423696 - Height Adjustment Spacer M1 | $2.97 | Add To Cart |
| 8 | 644778 - Height Adjustment Tube M1 | $75.85 | Add To Cart |
| 9 | 644305 - Latch Tube Guide | $28.10 | Add To Cart |
| 10 | 775104 - Deck Latch | $14.62 | Add To Cart |
| 11 | 243330 - Hex Bolt .375-16 x 1 | $0.51 | Add To Cart |
| 12 | 253890 - Lock Nut .375-16 | $0.62 | Add To Cart |
| 13 | 821516 - Nylon Washer | $1.15 | Add To Cart |
| 14 | 243560 - Hex Bolt .500-13 x 1 | $1.68 | Add To Cart |
| 15 | 253470 - Nylon Nut Insert | $0.72 | Add To Cart |
| 16 | 730434 - Height Adjustment Deck Pin | $15.12 | Add To Cart |
| 17 | 424052 - Rubber Bumper | $5.78 | Add To Cart |
| 18 | 253035 - Whiz Nut .375-16 | $0.34 | Add To Cart |
| 19 | 243205 - Hex Bolt | $0.67 | Add To Cart |
| 20 | 253215 - Flange Bolt | $4.37 | Add To Cart |
| 21 | 423643 - Bearing Block - M1 | $6.60 | Add To Cart |
| 22 | 774064 - Lift Bearing Plate | $5.65 | Add To Cart |
| 23 | 644481 - Adjustable Lift Lever - M1 Deck | $192.45 | Add To Cart |
| 24 | 644707 - right Rear Deck Rocker - M1 | $51.74 | Add To Cart |
| 25 | 644708 - left Rear Deck Rocker - M1 | $51.74 | Add To Cart |
| 26 | 263529 - External Retainer | $0.60 | Add To Cart |
| 27 | 326100 - M152 Rod & Spring Assembly | Call for Details | |
| 28 | 882035 - Spring Rod Mount Shaft | $11.55 | Add To Cart |
| 29 | 283392 - Compression Spring | Call for Details | |
| 30 | 257080 - Washer | $1.26 | Add To Cart |
| 31 | 254490 - Nut .625-11 | $0.96 | Add To Cart |
| 32 | 820331 - Chain - 5 Links M1 | $9.80 | Add To Cart |
| 33 | 243458 - Hex Bolt .437-.14 x 1.75 GR 8 | $3.63 | Add To Cart |
| 34 | 253058 - Whiz Nut .437-14 | $0.84 | Add To Cart |
| 35 | 254493 - Nut .625-18 | $1.26 | Add To Cart |
| 36 | 123522 - Bearing Cup | $4.21 | Add To Cart |
| 37 | 122522 - Taper Bearing 1.000 ID | $8.36 | Add To Cart |
| 38 | 257320 - Spring Washer | $1.97 | Add To Cart |
| 39 | 254505 - Jam Nylon-Top Lock Nut | $2.31 | Add To Cart |
| 40 | 481434 - Domed Dust Cap | $5.61 | Add To Cart |
| 41 | 125855 - Seal | $3.05 | Add To Cart |
| 42 | 282615 - Spacer | $2.06 | Add To Cart |
| 43 | 645221 - Tailwheel Tapered Fork Bearing | $75.04 | Add To Cart |
| 44 | 247726 - Carriage Bolt | $9.58 | Add To Cart |
| 45 | 253970 - Lock Nut .625-11 | $10.10 | Add To Cart |
| 46 | 902422 - Axle Spacer | $4.54 | Add To Cart |
| 47 | 603975 - Wheel Assembly with Bearings | $138.29 | Add To Cart |
| - | 482355 - Ribbed Tire 13 x 6.50 x 6 | $41.40 | Add To Cart |
| - | 483306 - Wheel without Tire 6 x 4.5 | $57.33 | Add To Cart |
| 48 | 423750 - Axle Spacer | $3.71 | Add To Cart |
| 49 | 120048 - Wheel Ball Bearing - .625 DP | $20.99 | Add To Cart |
| 50 | 732586 - Adjusting Strap | $14.14 | Add To Cart |
| 51 | 644467 - M1 Carrier Adjustable Foot Pedal | Call for Details | |
| 52 | 253203 - Flange Whiz Bolt | $15.35 | Add To Cart |
| 53 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 54 | 257092 - Washer 18 Gauge Bushing | $1.36 | Add To Cart |
| 55 | 643677 - Suspension Fork Yoke Pivot | $58.75 | Add To Cart |
| 56 | 121734 - Oilite Bearing | $6.11 | Add To Cart |
| 57 | 643313 - Suspension Fork Yoke | $165.60 | Add To Cart |
| 58 | 257442 - Lock Washer | $0.36 | Add To Cart |
| 59 | 887114 - Suspension Fork Pivot Bolt | $13.07 | Add To Cart |
| 60 | 257063 - Washer | $0.36 | Add To Cart |
| 61 | 243600 - Hex Bolt | $2.64 | Add To Cart |
| 62 | 283326 - Compression Spring | $3.30 | Add To Cart |
| 63 | 283389 - Compression Spring | $4.95 | Add To Cart |
| 64 | 257062 - Washer | $0.38 | Add To Cart |
| 65 | 253930 - Lock Nut | $1.10 | Add To Cart |
| 66 | 254461 - Nut | $0.48 | Add To Cart |
