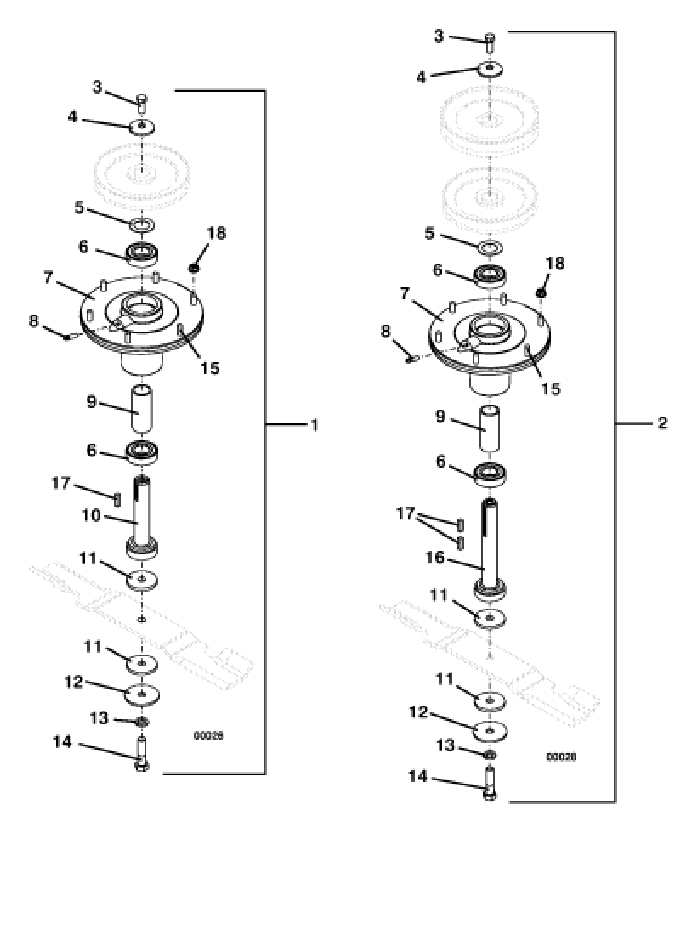

325 Blade Spindle Assembly - M152 / M161 - 2003
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 623781 - Spindle Assembly, left & right (includes items 3-15) | $181.41 | Add To Cart |
| 2 | 623780 - Spindle Assembly, center (includes items 3-9 and 11-16) | $183.08 | Add To Cart |
| 3 | 243331 - Hex Bolt .375-24 x 1 | $1.10 | Add To Cart |
| 4 | 257041 - Cupped Washer | $2.54 | Add To Cart |
| 5 | 257106 - Washer | $5.15 | Add To Cart |
| 6 | 110082 - Ball Bearing 25mm | $13.15 | Add To Cart |
| 7 | 604421 - Spindle Housing Assembly with Studs | $89.85 | Add To Cart |
| 8 | 280745 - Grease Fitting 1/4-28 x 1.125 | $1.98 | Add To Cart |
| 9 | 903643 - Deep Spindle Bearing Spacer | $14.11 | Add To Cart |
| 10 | 604775 - Spindle Shaft Assembly | $42.64 | Add To Cart |
| 11 | 421200 - Fiber Washer | $1.89 | Add To Cart |
| 12 | 257061 - Washer | $3.73 | Add To Cart |
| 13 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 14 | 243581 - Hex Bolt .500-20 x 2 | $4.82 | Add To Cart |
| 15 | 247141 - Stud Bolt .312-18 x 1.25 | $14.75 | Add To Cart |
| 16 | 604773 - Spindle Shaft Assembly | $46.15 | Add To Cart |
| 17 | 281582 - Square Key .250 x .875 | $1.99 | Add To Cart |
| 18 | 253035 - Whiz Nut | $0.34 | Add To Cart |
