Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

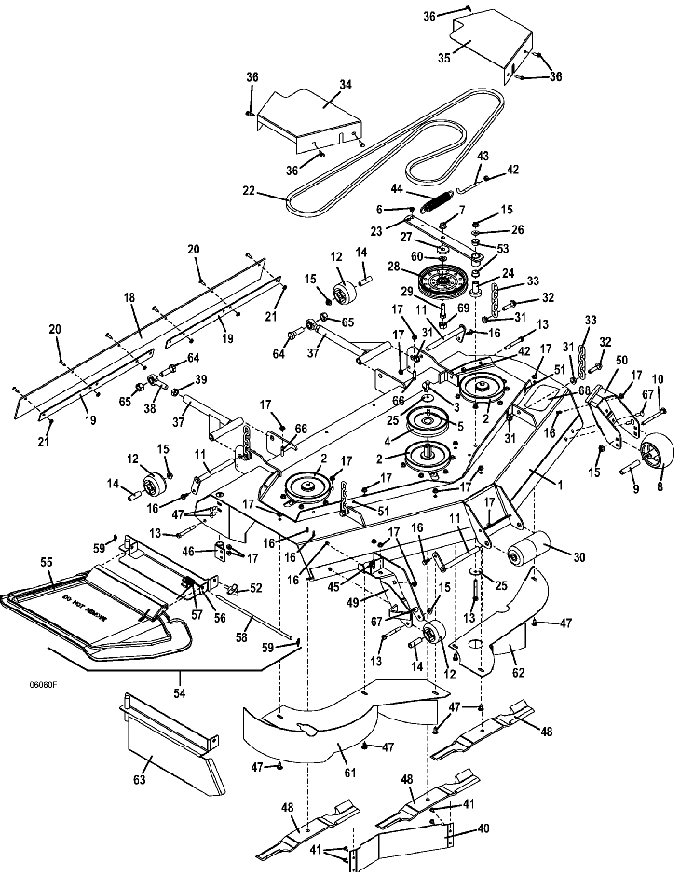

329 • Deck Assembly - M152

2012

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M152/07 Deck Weldment

644159

2

Sheave

415892

3

Hex Bolt

243331

4

Sheave

415897

5

Square Key

281582

6

Nylon Bearing

422520

7

Flange Spiral Lock Nut

253067

8

Anti-Scalp Center Hub Wheel

484230

9

Bearing Tube

942137

10

Carriage Bolt

247310

11

Roller Lock Pin

644512

12

Roller

426122

13

Hex Bolt

243365

14

Roller Mount Spacer

902284

15

Whiz Nut

253043

16

Hex Flange Whiz Bolt

253192

17

Whiz Nut

253035

18

M1 52" Deck Flap

424205

19

M1 52-9861 right Deflector Strap

774280

20

Phillips Head Truss Whiz Bolt

253179

21

Whiz Nut

253025

22

Belt

382082

23

M1 52/61 Idler Arm

824488

24

Pedestal Bearing

121650

25

Cupped Washer

257041

26

Washer

257040

27

Washer

883804

28

Idler

393250

29

Hex Bolt

243575

30

2 Piece Center Roller Assembly

603725

31

Whiz Nut

253058

32

GR 8 Hex Bolt

243458

33

5 Links M1 Chain

820331

34

Right Belt Shield 52/220

722333

35

Left Belt Shield 52/220

722334

36

Hex Whiz Bolt

253175

37

M1 300 Radius Arm Assembly

604676

38

Rod End

265665

39

Nut

254493

40

M1/3452 Aux Front Shroud

724588

41

Truss Whiz Bolt

253176

42

Nut

254450

43

Idler Adjustment J Bolt

730391

44

Extension Spring

283848

45

Speeed Nut

254448

46

Vac Housing Pivot Mount

643632

47

Carriage Bolt

247130

48

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" High Lift Notch Blade

320239

-

18" Hi-Low Mulch Blade

320240

-

18" Extreme Hi-Lift Blade

320241

49

M152 Right Anti-Scalp Roller Mount

645578

50

Left Anti-Scalp Roller Mount

645579

51

Speed Nut

254431

52

3 Prong Head Deck Stud (Knob)

252821

53

Oilite Bearing

121756

54

Discharge Flex Shield Assembly

604317

55

Discharge Flex Shield

422042

56

Discharge Flex Shield Mount

644570

57

Torsion Spring

284406

58

Discharge Flex Shield Pin

780650

59

Cotter Ring

260608

60

Washer

257062

61

M1 52 right Mulch Plate

644608

62

M1 52 left Mulch Plate

644609

63

Mulch End Cap

644058

64

Hex Bolt

243810

65

Lock Nut

253970

66

Flanged Hex Whiz Bolt

253195

67

Carriage Bolt

247135

70

Step Tread

420901

71

Idler Arm Stabilizer Cap

423670
