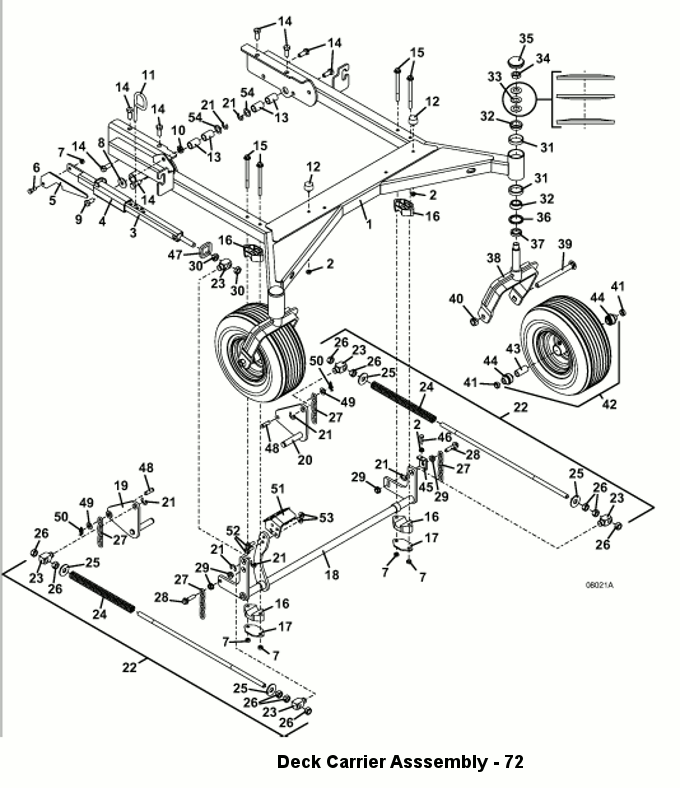

335B Deck Carrier Assembly M172 - 2009
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644135 - M172 Carrier | Call for Details | |
| - | 162187 - Cutting Height Decal | $2.39 | Add To Cart |
| 2 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 3 | 644778 - M1 Height Adjustment Tube | $75.85 | Add To Cart |
| 4 | 644305 - Latch Tube Guide | $28.10 | Add To Cart |
| 5 | 775104 - Deck Latch | $14.62 | Add To Cart |
| 6 | 243330 - Hex Bolt | $0.51 | Add To Cart |
| 7 | 253890 - Lock Nut | $0.62 | Add To Cart |
| 8 | 821516 - Nylon Washer | $1.15 | Add To Cart |
| 9 | 243560 - Hex Bolt | $1.68 | Add To Cart |
| 10 | 253470 - Nylon Insert Nut | $0.72 | Add To Cart |
| 11 | 730434 - Height Adjustment Deck Pin | $15.12 | Add To Cart |
| 12 | 424052 - Rubber Bumper | $5.78 | Add To Cart |
| 13 | 121766 - Oilite Bearing | $8.09 | Add To Cart |
| 14 | 243565 - Hex Bolt | $2.10 | Add To Cart |
| - | 253067 - Nut - Flange Spriral Loct | $2.23 | Add To Cart |
| 15 | 253215 - Flange Bolt | $4.37 | Add To Cart |
| 16 | 423643 - M1 Bearing Block | $6.60 | Add To Cart |
| 17 | 774064 - Lift Bearing Plate | $5.65 | Add To Cart |
| 18 | 644482 - M1 Deck Adjustable Lift Lever | Call for Details | |
| 19 | 644707 - M1 right Rear Deck Rocker | $51.74 | Add To Cart |
| 20 | 644708 - M1 left Rear Deck Rocker | $51.74 | Add To Cart |
| 21 | 263529 - External Retainer | $0.60 | Add To Cart |
| 22 | 326108 - Rod & Spring Assembly M172 | Call for Details | |
| 23 | 882035 - Spring Rod Mount Shaft | $11.55 | Add To Cart |
| 24 | 283395 - Compression Spring | $28.92 | Add To Cart |
| 25 | 257080 - Washer | $1.26 | Add To Cart |
| 26 | 254490 - Nut | $0.96 | Add To Cart |
| 27 | 820331 - M1 Chain - 5 Links | $9.80 | Add To Cart |
| 28 | 243458 - Hex Bolt GR 8 | $3.63 | Add To Cart |
| 29 | 253058 - Whiz Nut | $0.84 | Add To Cart |
| 30 | 254493 - Nut | $1.26 | Add To Cart |
| 31 | 123522 - Bearing Cup | $4.21 | Add To Cart |
| 32 | 122522 - Taper Bearing | $8.36 | Add To Cart |
| 33 | 257320 - Spring Washer | $1.97 | Add To Cart |
| 34 | 254505 - Nut - Jam Nylon - Toplock | $2.31 | Add To Cart |
| 35 | 481434 - Domed Dust Cap | $5.61 | Add To Cart |
| 36 | 125855 - Seal | $3.05 | Add To Cart |
| 37 | 282615 - Spacer | $2.06 | Add To Cart |
| 38 | 604365 - Fork & Lock Nut Assembly | $104.88 | Add To Cart |
| 39 | 247725 - Carriage Bolt | $9.58 | Add To Cart |
| 40 | 253970 - Lock Nut | $10.10 | Add To Cart |
| 41 | 902422 - Axle Spacer | $4.54 | Add To Cart |
| 42 | 603975 - Rear Wheel Assembly with Bearings 13x6.5x6 | $138.29 | Add To Cart |
| - | 482355 - Ribbed Tire 13 x 6.50 x 6 | $41.40 | Add To Cart |
| - | 483306 - Wheel without Tire / without Bearings 6 x 4.5 | $57.33 | Add To Cart |
| 43 | 902429 - Rear Axle Center Spacer | $11.02 | Add To Cart |
| 44 | 120048 - DP Wheel Ball Bearing | $20.99 | Add To Cart |
| 45 | 732586 - M1 Deck Adjusting Strap | $14.14 | Add To Cart |
| 46 | 243205 - Hex Bolt | $0.67 | Add To Cart |
| 47 | 423696 - Height Adjustment Spacer - M1 | $2.97 | Add To Cart |
| 48 | 261405 - Clevis Pin | $1.30 | Add To Cart |
| 49 | 257051 - Washer | $0.24 | Add To Cart |
| 50 | 260612 - Cotter Ring | $0.96 | Add To Cart |
| 51 | 644467 - Foot Pedal - M1 Carrier Adjustable | Call for Details | |
| 52 | 253203 - Bolt Whiz Flange | $15.35 | Add To Cart |
| 53 | 253043 - Nut - Whiz | $0.84 | Add To Cart |
| 54 | 257092 - Washer - 18 GA Bushing | $1.36 | Add To Cart |
