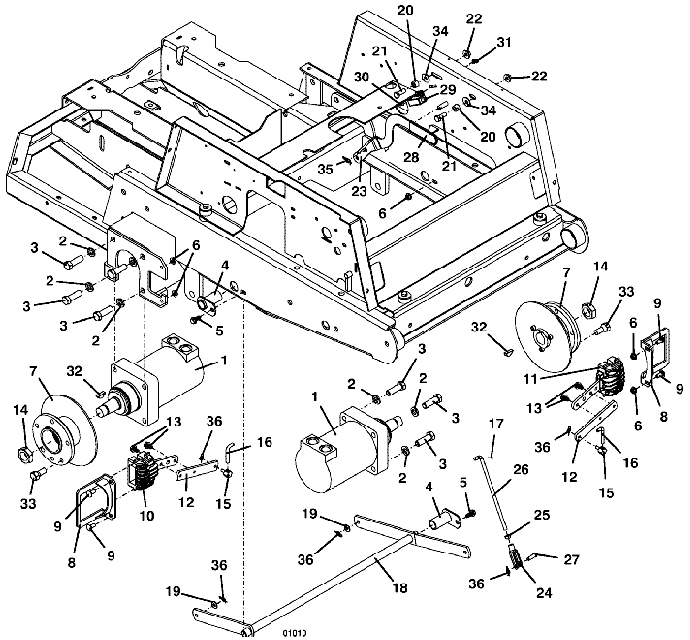

1

Wheel Motor with Hub - 325 / 400

603610

2

Lock Washer

257442

3

Hex Bolt .562-18 x 1.75 GR 5

243770

4

Bolt-In Brake Tube

644077

5

Hex Flange Whiz Bolt .312-18 x .75

253192

6

Whiz Nut

253035

7

Bolt-On Rotor Wheel Hub

604440

8

Caliper Mount

644121

9

Carriage Bolt .312 x .75

247130

10

right Brake Assembly - counterclockwise

481101

-

Brake Pad Kit

603150

11

left Brake Assembly - clockwise

481100

-

Brake Pad Kit

603150

12

Brake Linkage - M1 400

782879

13

Whiz Bolt .312-18 x .500

253189

14

1-20 Nut

254522

15

Brake Linkage Pin

880924

16

928 Brake Linkage Rod

730155

17

Cotter Pin

260624

18

Brake Tube - 400

644174

19

Washer

257020

20

Spacer

902280

21

Hex Bolt .375-16 x 1

243330

22

Whiz Nut .375-16

253043

23

Brake Lever - M1

754055

24

Clevis Yoke

265537

25

Nut .312-24

254441

26

Brake Rod - M1

730358

27

Clevis Pin .312 x 1

261284

28

Handle Grip

422150

29

Brake Interlock Switch

183894

30

Machine Screw

250258

31

Whiz Nut 10-24

253020

32

Woodruff Key .312 x 1

281860

33

Lug Bolt .500 x .875

248565

34

Washer

257040

35

Cotter Ring

260608

36

Cotter Ring

260606
