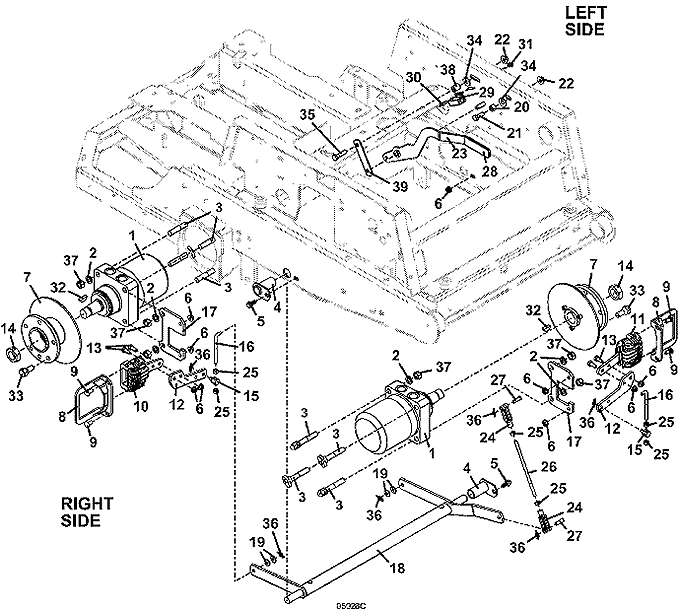

430D Wheel Motor & Brake Assembly - 2008
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603604 - Wheel Motor with Hub | $993.70 | Add To Cart |
| 2 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 3 | 243597 - Diamond Head Bolt | $3.60 | Add To Cart |
| 4 | 644077 - Bolt-In Brake Tube | $12.45 | Add To Cart |
| 5 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 6 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 7 | 604440 - Bolt-On Rotor Wheel Hub | $161.00 | Add To Cart |
| - | 259592 - Socket Head Screw | $1.68 | Add To Cart |
| - | 775192 - 8.0 Brake Rotor | $32.76 | Add To Cart |
| 8 | 644121 - Caliper Mount | $36.34 | Add To Cart |
| 9 | 247130 - Carriage Bolt | $0.82 | Add To Cart |
| 10 | 481103 - Brake Assembly - counterclockwise Caliper | $100.45 | Add To Cart |
| - | 603150 - Brake Pad Kit | $44.07 | Add To Cart |
| 11 | 481102 - Brake Assembly - clockwise Caliper | $100.45 | Add To Cart |
| - | 603150 - Brake Pad Kit | $44.07 | Add To Cart |
| 12 | 776056 - M1 Brake Caliper Arm | $16.51 | Add To Cart |
| 13 | 243195 - Hex Bolt | $0.53 | Add To Cart |
| 14 | 254522 - Nut | $14.43 | Add To Cart |
| 15 | 880926 - .312 Brake Linkage Pin | $7.10 | Add To Cart |
| 16 | 730158 - M1 Brake Linkage Rod | $13.84 | Add To Cart |
| 17 | 776174 - 7.75 Rotor Brake Mount | $26.84 | Add To Cart |
| 18 | 644174 - 400S W/A Brake Tube | Call for Details | |
| 19 | 257032 - Washer | $0.12 | Add To Cart |
| 20 | 902280 - Spacer | $5.86 | Add To Cart |
| 21 | 243330 - Hex Bolt | $0.51 | Add To Cart |
| 22 | 253043 - Whiz Nut | $0.84 | Add To Cart |
| 23 | 644447 - M1 Brake Lever | $24.40 | Add To Cart |
| 24 | 265537 - Clevis Yoke | $10.94 | Add To Cart |
| 25 | 254441 - Nut | $0.26 | Add To Cart |
| 26 | 780157 - Linkage Rod | $7.30 | Add To Cart |
| 27 | 261284 - Clevis Pin | $1.47 | Add To Cart |
| 28 | 422150 - Handle Grip | $3.05 | Add To Cart |
| 29 | 183894 - Brake Interlock Switch | $10.03 | Add To Cart |
| 30 | 250258 - Machine Screw | $0.36 | Add To Cart |
| 31 | 253020 - Whiz Nut | $0.24 | Add To Cart |
| 32 | 281860 - Woodruff Key | $2.72 | Add To Cart |
| 33 | 248565 - Lug Bolt | $2.54 | Add To Cart |
| 34 | 257040 - Washer | $2.60 | Add To Cart |
| 35 | 243340 - Hex Bolt | $1.16 | Add To Cart |
| 36 | 260606 - Cotter Ring | $0.48 | Add To Cart |
| 37 | 254470 - Nut | $0.62 | Add To Cart |
| 38 | 902283 - Spacer | $3.80 | Add To Cart |
| 39 | 774145 - M1 Reinforcement Pin | $2.55 | Add To Cart |
