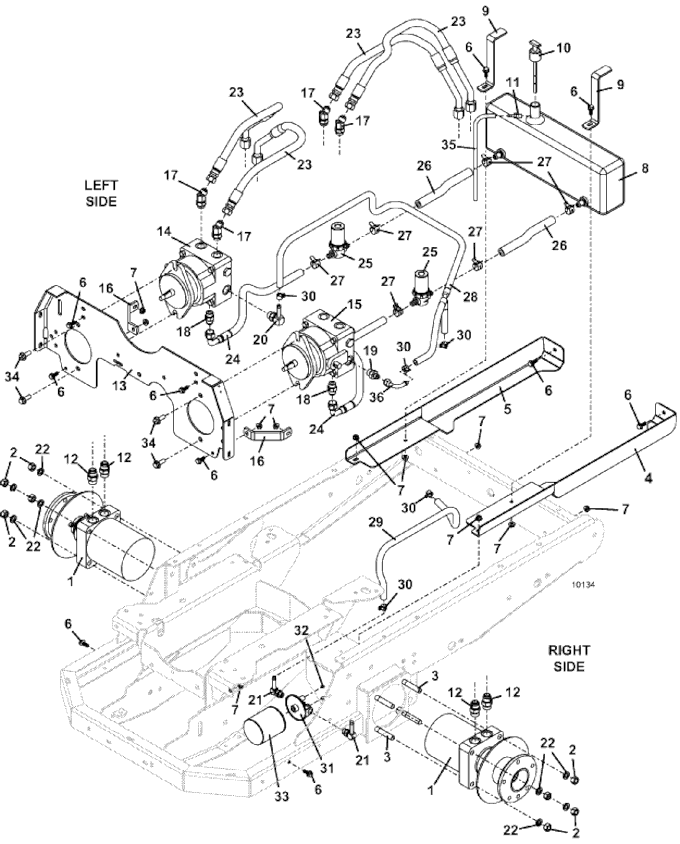

432 Reservoir and Hose Assembly - 2013
Click On a Part Number Below for Details
NOTE: If the part number you need is not shown, call us at 866 698 4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 603604 - Wheel Motor w/Hub | $993.70 | Add To Cart |
| 2 | 254470 - Nut | $0.62 | Add To Cart |
| 3 | 243597 - Diamond Head Bolt | $3.60 | Add To Cart |
| 4 | 645802 - 300/400 Tank Rail - right | Call for Details | |
| 5 | 645803 - 300/400 Tank Rail - left | Call for Details | |
| 6 | 253192 - Hex Flange Whiz Bolt | $1.01 | Add To Cart |
| 7 | 253035 - Whiz Nut | $0.34 | Add To Cart |
| 8 | 603606 - M1 325/400 Oil Reservoir Assembly | $154.56 | Add To Cart |
| - | 101875 - Grommet | $1.73 | Add To Cart |
| - | 101880 - Grommet | $3.05 | Add To Cart |
| - | 360058 - Straight Fitting | $8.09 | Add To Cart |
| - | 363638 - 90 degree Fitting | $7.01 | Add To Cart |
| 9 | 732557 - Oil Tank Strap | Call for Details | |
| 10 | 100728 - M1 Oil Reservoir Dipstick | $8.21 | Add To Cart |
| 11 | 363826 - Straight Barbed Fitting | $1.82 | Add To Cart |
| 12 | 360069 - Adapter Fitting | $8.59 | Add To Cart |
| - | 126529 - O Ring | $1.08 | Add To Cart |
| - | 126537 - O Ring | Add To Cart | |
| 13 | 644633 - 325/400 Pump Plate | Call for Details | |
| 14 | 391452 - Hydro Pump - left | $824.95 | Add To Cart |
| 15 | 391453 - Hydro Pump - right | $824.95 | Add To Cart |
| 16 | 732882 - Pump Plate Rein Strap | $8.15 | Add To Cart |
| 17 | 360046 - Adapter Fitting | $12.54 | Add To Cart |
| - | 126527 - O-Ring | $0.60 | Add To Cart |
| - | 126535 - O-Ring | $1.36 | Add To Cart |
| 18 | 363832 - Steel O Ring Boss Fitting | $4.37 | Add To Cart |
| 19 | 360080 - Flare O-Ring Adapter | $3.95 | Add To Cart |
| 20 | 360062 - Adapter | Call for Details | |
| 21 | 360056 - Adapter | $12.39 | Add To Cart |
| 22 | 257432 - Lock Washer | $0.38 | Add To Cart |
| 23 | 424377 - Hose Assembly w/Sleeve | $64.09 | Add To Cart |
| 24 | 424321 - Hose Assembly | $27.95 | Add To Cart |
| 25 | 366553 - In-Line Strainer | $28.47 | Add To Cart |
| 26 | 821796 - Hydraulic Hose | $14.97 | Add To Cart |
| 27 | 280266 - Spring Hose Clamp | $3.38 | Add To Cart |
| 28 | 424315 - Hose Assembly | $48.88 | Add To Cart |
| 29 | 821787 - Hydraulic Hose | $13.84 | Add To Cart |
| 30 | 280264 - Spring Hose Clamp | $2.64 | Add To Cart |
| 31 | 101024 - Filter Base - M1 Series | $25.61 | Add To Cart |
| 32 | 253173 - Hex Whiz Bolt | $0.77 | Add To Cart |
| 33 | 100855 - High-Efficiency Transaxle Oil Filter | $32.31 | Add To Cart |
| 34 | 243570 - Hex Bolt | $1.10 | Add To Cart |
| 35 | 821724 - Clear Vent Hose | $5.61 | Add To Cart |
| 36 | 363846 - Fitting | $13.46 | Add To Cart |
