Genuine OEM Grasshopper® Mower Parts Diagrams

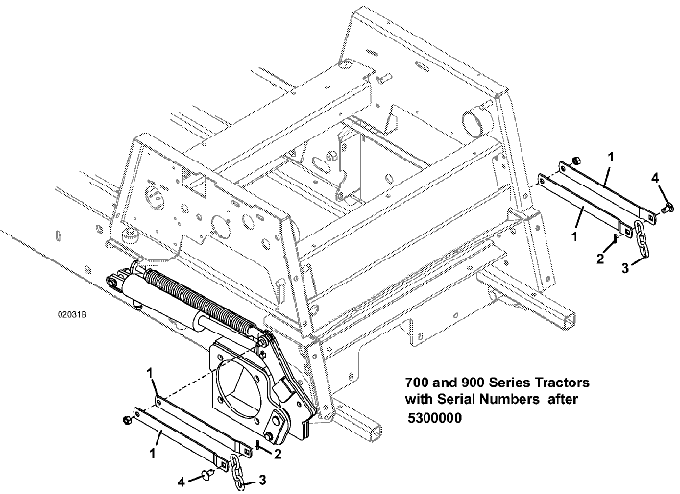

3572R Rear Discharge Front Mount Deck • Traction Kit Adapter
2014
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
600 series with SL Deck Lift Strap |
732410 |
2 |
Cotter Pin |
260648 |
3 |
Lift Chain with 3 Links |
820317 |
4 |
Clevis Pin |
261336 |
