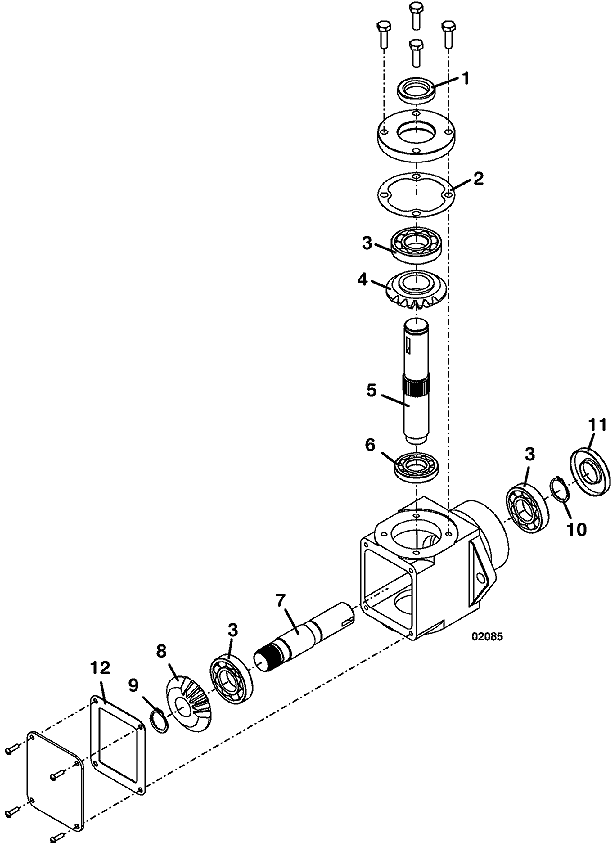

3344 / 3348 Decks Right Angle Gearbox Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 125336 - Seal | Add To Cart | |
| 2 | 420201 - Gearbox Cap Gasket | Add To Cart | |
| 3 | 120071 - Ball Bearing | Add To Cart | |
| 4 | 392501 - .995 8 Pitch Bevel Gear | Add To Cart | |
| 5 | 393517 - 1.000 Shaft | Add To Cart | |
| 6 | 120065 - Ball Bearing | Add To Cart | |
| 7 | 393513 - .875 Shaft | Add To Cart | |
| 8 | 392500 - .865 8 Pitch Bevel Gear | Add To Cart | |
| 9 | 263530 - External Retainer | Add To Cart | |
| 10 | 263540 - External Retainer | Add To Cart | |
| 11 | 125339 - Seal | Add To Cart | |
| 12 | 420200 - Gearbox Cover Gasket | Add To Cart |
