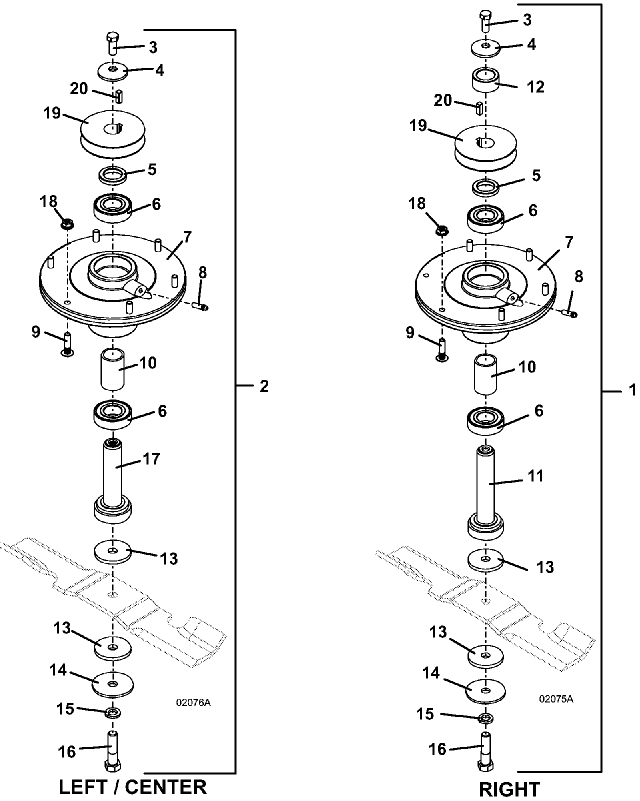

3344 Deck • Blade Spindle Assembly
2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3344 right Spindle Assembly (includes items 3-16) |
623773 |
2 |
3344 left & center Spindle Assembly (includes items 3-10 & 13-17) |
623774 |
3 |
Hex Bolt |
243331 |
4 |
Cupped Washer |
257041 |
5 |
Spacer |
282607 |
6 |
Single Seal Ball Bearing |
110082 |
7 |
4.0 Machined Spindle Housing |
320545 |
8 |
Zerk Grease Fitting |
280745 |
9 |
Ribbed Neck Round Head Bolt |
247141 |
10 |
Shallow Spacer Bearing Spacer |
903645 |
11 |
Spindle Shaft Assembly |
604768 |
12 |
Spacer |
282630 |
13 |
Fiber Washer |
421200 |
14 |
Washer |
257061 |
15 |
Lock Washer |
257432 |
16 |
Grade 5 Hex Bolt |
243581 |
17 |
25mm 4.75 Spindle Shaft Assembly |
604764 |
18 |
Whiz Nut |
253035 |
19 |
Sheave |
414675 |
20 |
Square Key |
281580 |
