Genuine OEM Grasshopper® Mower Parts Diagrams

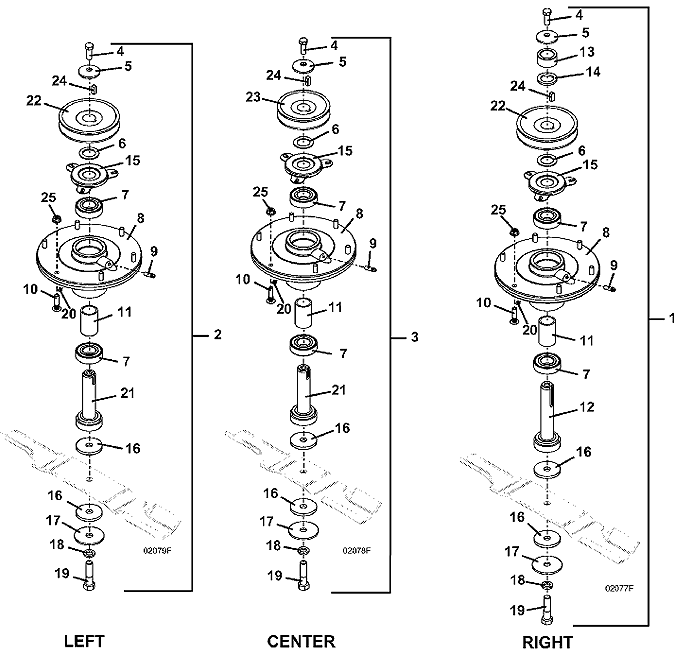

3348 Deck • Blade Spindle Assembly
2004
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
3348 right Spindle Assembly (does not include item 25) |
623778 |
2 |
3348 left Spindle Assembly (does not include item 25) |
623779 |
3 |
3348 center Spindle Assembly (does not include item 25) |
623771 |
4 |
Hex Bolt |
243331 |
5 |
Cupped Washer |
257041 |
6 |
Washer |
257104 |
7 |
25mm 2 Reg Seal Ball Bearing |
110081 |
8 |
Aluminum Spindle Housing Assembly |
604412 |
9 |
Zerk Grease Fitting |
280745 |
10 |
Ribbed Neck Round Head Bolt |
247141 |
11 |
Shallow Spacer Bearing Spacer |
903645 |
12 |
Spindle Shaft Assembly |
604768 |
13 |
Spacer |
282630 |
14 |
Washer |
257107 |
15 |
Bearing Shield |
721167 |
16 |
Fiber Washer |
421200 |
17 |
Washer |
257061 |
18 |
Hardened-Blade Spindle Washer |
257057 |
19 |
Grade 5 Hex Bolt |
243581 |
20 |
Relief Plug |
280705 |
21 |
25mm 4.75 Spindle Shaft Assembly |
604764 |
22 |
Sheave |
414696 |
23 |
Sheave |
414685 |
24 |
Square Key |
281580 |
25 |
Whiz Nut |
253035 |
