Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

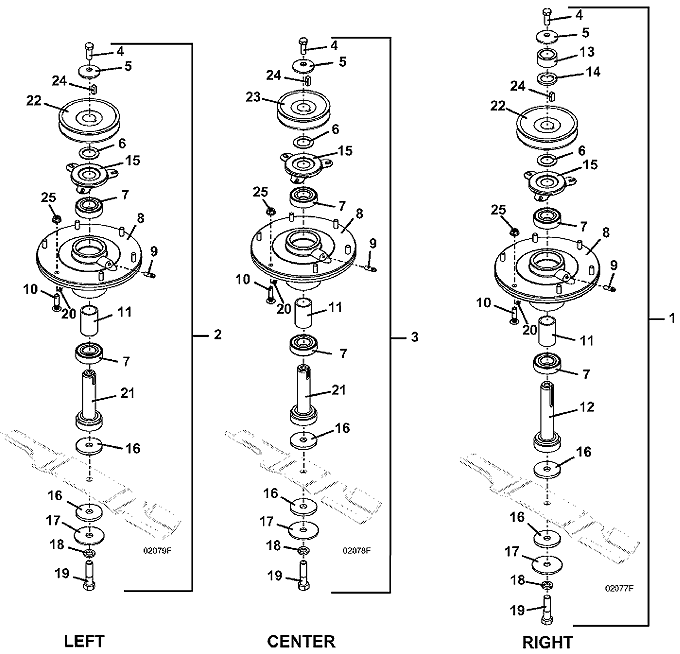

3348 Deck • Blade Spindle Assembly

2005

Blade Spindle Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3348 right Spindle Assembly (does not include item 25)

623778

2

3348 left Spindle Assembly (does not include item 25)

623779

3

3348 center Spindle Assembly (does not include item 25)

623771

4

Hex Bolt

243331

5

Cupped Washer

257041

6

Washer

257104

7

25mm 2 Reg Seal Ball Bearing

110081

8

Aluminum Spindle Housing Assembly

604412

9

Zerk Grease Fitting

280745

10

Ribbed Neck Round Head Bolt

247141

11

Shallow Spacer Bearing Spacer

903645

12

Spindle Shaft Assembly

604768

13

Spacer

282630

14

Washer

257107

15

Bearing Shield

721167

16

Fiber Washer

421200

17

Washer

257061

18

Hardened-Blade Spindle Washer

257057

19

Grade 5 Hex Bolt

243581

20

Relief Plug

280705

21

25mm 4.75 Spindle Shaft Assembly

604764

22

Sheave

414696

23

Sheave

414685

24

Square Key

281580

25

Whiz Nut

253035
