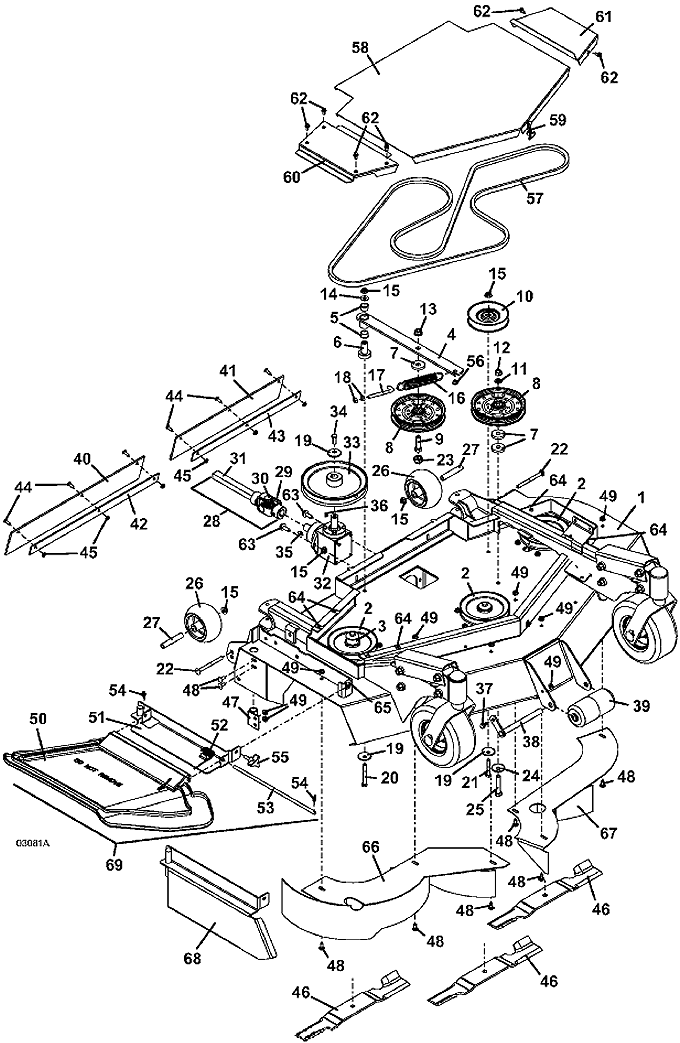

3452 Deck • Mower Assembly

2005

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3452 Deck Weldment

644168

2

Sheave

415892

3

Spacer

282630

4

3352 F/A Idler Arm

824493

5

Oilite Bearning

121756

6

Pedestal Bearing

121650

7

Washer

883804

8

Idler

393250

9

Hex Bolt

243575

10

Idler

393376

11

Lock Washer

257432

12

Nut

254470

13

Flange Spiral Lock Nut

253067

14

Washer

257040

15

Whiz Nut

253043

16

Extension Spring

283848

17

Idler Adjustment J Bolt

730391

18

Nut

254450

19

Cupped Washer

257041

20

Hex Bolt

243365

21

Hex Bolt

243355

22

Carriage Bolt

247310

23

Idler Arm Stabilizer Cap

423670

24

Washer

257059

25

Hex Bolt

243590

26

Anti-Scalp Center Hub Wheel

484230

27

Tube Bearing

942137

28

UN Half Shaft

398528

29

Yoke

401010

30

Cross & Bearing

121010

31

Yoke & Shaft

402608

32

HD Counter Clockwise Right Angle Gearbox

390025

-

.980 Seal

125340

-

.980 Seal

125342

-

.980 Seal

125343

33

Sheave

415895

34

Hex Bolt

243331

35

Woodruff Key

281833

36

Woodruff Key

281828

37

Hex Flange Whiz Bolt

253192

38

Roller Lock Pin

644512

39

Center 2 Piece Roller Assembly

603725

40

3452 right Deck Flap

424223

41

3452 left Deck Flap

424224

42

Rear Deflector Strap

782595

43

Rear Deflector Strap

774229

44

Truss Whiz Bolt

253177

45

Whiz Nut

253025

46

18" High Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" Extreme High Lift Notch Blade

320241

47

Vac Housing Pivot Mount

643632

48

Carriage Bolt

247130

49

Whiz Nut

253035

50

Flex Discharge Shield

422042

51

Discharge Shield Mount

644570

52

Torsion Spring

284406

53

Flex Discharge Shield Pin

780650

54

Cotter Ring

260608

55

3-Prong Head Deck Stud (Knob)

252821

56

Nylon Bearing

422520

57

Belt

382084

58

3452 Center Shield Assembly

604742

59

Rubber Draw Latch

281300

60

3452 right Belt Shield

722702

61

3452 left Belt Shield

722703

62

Hex Whiz Bolt

253173

63

Flange Whiz Bolt

253203

64

Speed Nut

254431

65

Speed Nut

254448

66

M1 52 right Mulch Plate

644608

67

M1 52 left Mulch Plate

644609

68

3452/61/72 Mulch End Cap

644058

69

Flex Discharge Shield Assembly

604317

70

3452 Supr Gearbox Shield

755117

71

Decal Set for 34 Series Deck

603283
