Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

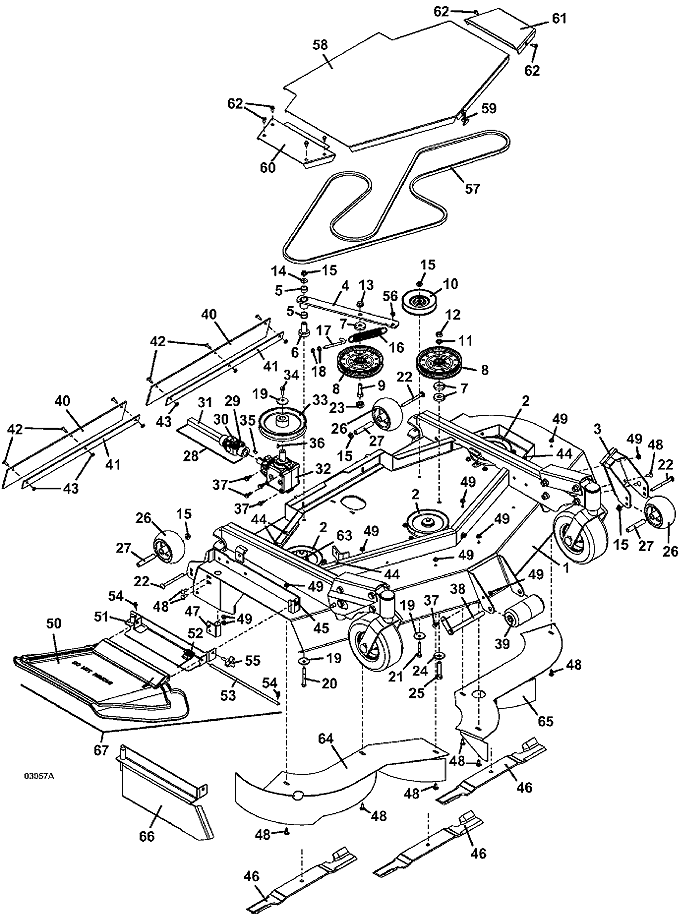

3461 • Mower Assembly

2005

Mower Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3461 Deck Weldment

644169

2

Sheave

415892

3

left Anti-Scalp Roller Mount

643695

4

9861 Idler Arm

824487

5

Oilite Bearning

121756

6

Pedestal Bearing

121650

7

Washer

883804

8

Idler

393250

9

Hex Bolt

243575

10

Idler

393376

11

Lock Washer

257432

12

Nut

254470

13

Flange Spiral Lock Nut

253067

14

Washer

257040

15

Whiz Nut

253043

16

Extension Spring

283848

17

Idler Adjustment J Bolt

730391

18

Nut

254450

19

Cupped Washer

257041

20

Hex Bolt

243365

21

Hex Bolt

243355

22

Carriage Bolt

247310

23

Idler Arm Stabilizer Cap

423670

24

Washer

257059

25

Hex Bolt

243590

26

Anti-Scalp Center Hub Wheel

484230

27

Tube Bearing

942137

28

UN Half Shaft

398528

29

Yoke

401010

30

Cross & Bearing

121010

31

Yoke & Shaft

402608

32

C0319.875 Counter Clockwise Right Angle Gearbox

390026

-

Seal

125391

-

1.5 inch Expansion Plug

365541

33

Sheave

415893

34

Hex Bolt

243331

35

Woodruff Key

281833

36

Woodruff Key

281828

37

Hex Flange Whiz Bolt

253192

38

Roller Lock Pin

644512

39

Center 2 Piece Roller Assembly

603725

40

3461 Deck Flap

424218

41

right Deflector Strap

782598

42

Truss Whiz Bolt

253177

43

Whiz Nut

253025

44

Speed Nut

254431

45

Speed Nut

254448

46

21" High Lift Notch Blade

320245

-

21" Medium Lift Blade

320242

-

21" Contour Blade

320244

-

21" Extreme High Lift Notch Blade

320246

47

Vac Housing Pivot Mount

643632

48

Carriage Bolt

247130

49

Whiz Nut

253035

50

Flex Discharge Shield

422042

51

Discharge Shield Mount

644570

52

Torsion Spring

284406

53

Flex Discharge Shield Pin

780650

54

Cotter Ring

260608

55

3-Prong Head Deck Stud (Knob)

252821

56

Nylon Bearing

422520

57

Belt

382090

58

3461 Center Shield Assembly

604743

59

Rubber Draw Latch

281300

60

3361 right Belt Shield

722676

61

3361 200 left Belt Shield

722677

62

Hex Whiz Bolt

253173

63

Spacer

282630

64

M1 61 right Mulch Plate

644611

65

M1 61 left Mulch Plate

644610

66

3452/61/72 Mulch End Cap

644058

67

Flex Discharge Shield Assembly

604317

68

Decal Set for 34 Series Deck

603283
