Genuine OEM Grasshopper® Mower Parts Diagrams

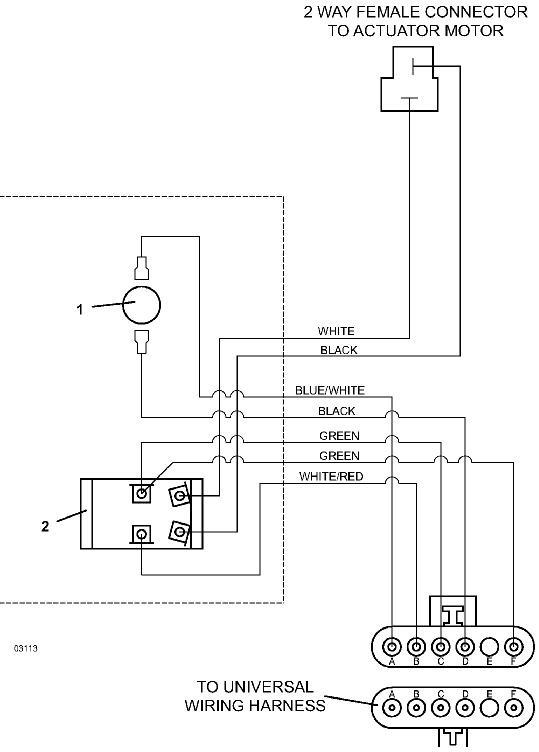

Powerfold Wiring • 3472 Front Mount Deck
2012
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Snap Mount Plunger SPST NC Switch |
183867 |
2 |
Toggle |
184084 |
- |
Toggle Switch Boot |
425200 |
- |
Keyed Washer |
770005 |
3 |
Deck Tilt/Height Adjustment Wiring Assembly |
605965 |
