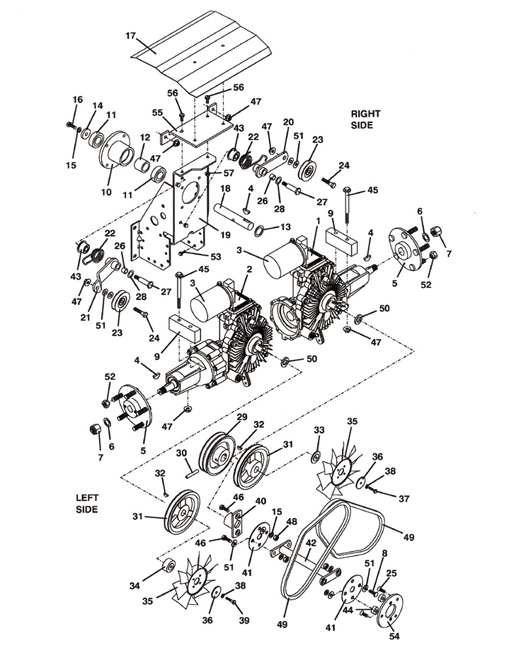

Item # |
Description |
Part Number |
1 |
Hydrostatic Transmission - Right |
391207 |
2 |
Hydrostatic Transmission - Left |
391206 |
3 |
Hydro Oil Filter |
100850 |
4 |
Woodruff Key |
281836 |
5 |
Hub |
603429 |
6 |
Washer |
257102 |
7 |
Nut w/Nylon Insert |
253501 |
8 |
Bolt |
830040 |
9 |
Spacer |
901745 |
10 |
Spindle Housing |
320522 |
11 |
Bearing |
110081 |
12 |
Spacer |
903650 |
13 |
Washer |
257106 |
14 |
Washer Retainer |
883801 |
15 |
Lock Washer |
257412 |
16 |
Bolt |
243331 |
17 |
Shield |
693771 |
18 |
Shaft Assembly |
603764 |
19 |
Mount - CTR Drive |
643112 |
20 |
Lower Idler Arm Assembly w/Spring |
603066 |
21 |
Upper Idler Arm Assembly w/Spring |
603065 |
22 |
Torsion Spring |
284425 |
23 |
Idler |
393312 |
24 |
Bolt |
243345 |
25 |
Cap Screw |
270346 |
26 |
Nylon Bearing |
422558 |
27 |
Shoulder Bolt |
259745 |
28 |
Steel Shim |
282350 |
29 |
Sheave |
414554 |
30 |
Roll Pin |
261061 |
31 |
Sheave |
415550 |
32 |
Woodruff Key |
281829 |
33 |
Fan Spacer |
423723 |
34 |
Fan Spacer |
423724 |
35 |
Nylon Fan CCW |
320856 |
36 |
Washer |
774023 |
37 |
Bolt |
243030 |
38 |
Lock Washer |
257392 |
39 |
Bolt |
243045 |
40 |
Hub |
824550 |
41 |
Coupling Disc |
821530 |
42 |
Coupling Connector |
643219 |
43 |
Bearing - Idler Arm |
422750 |
44 |
Coupling Spacer |
902318 |
45 |
Bolt |
253215 |
46 |
Bolt |
243330 |
47 |
Whiz Nut |
253043 |
48 |
Nut |
254450 |
49 |
Belt |
381904 |
50 |
Washer |
775002 |
51 |
Washer |
257030 |
52 |
Nut |
254472 |
53 |
Bolt |
253174 |
54 |
Coupling Adapter |
783458 |
55 |
Mount Plate |
726139 |
56 |
Bolt |
253192 |
57 |
Whiz Nut |
253035 |
