grasshopper

721D
21HP Kubota Diesel

Year Model:2002

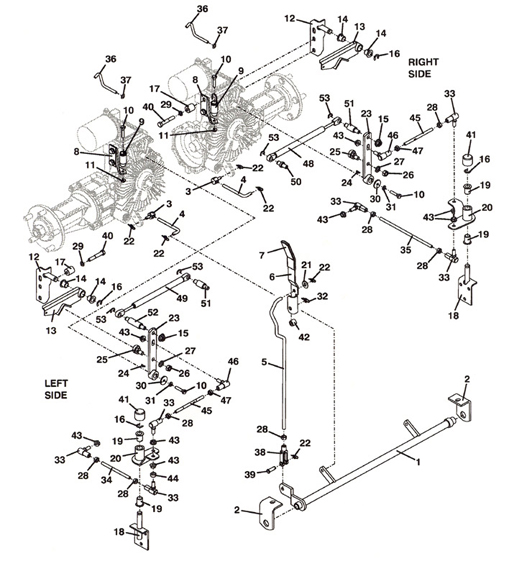

Drive Linkage Assembly

Drive Linkage Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1

Brake Pivot

643955

2

Brake Pivot Mount Bracket

732610

3

Brake Linkage Pin

880924

4

Brake Linkage Rod

730256

5

Brake Rod

730361

6

Brake Lever

729046

7

Handle Grip

422150

8

Neutral Return Spring Bracket

729072

9

Extension Spring

283823

10

Bolt

243030

11

Nut

253025

12

Mount

643603

13

Neutral Return Arm w/Bearing

603084

14

Bearing Sleeve

422556

15

Nut

253043

16

External Retainer

263500

17

Spacer

902307

18

Pivot

643627

19

Bearing Sleeve

422559

20

Pivot Linkage w/Bearing

603567

21

Washer

257030

22

Cotter Ring

260606

23

Arm

643059

24

Woodruff Key

281823

25

Roller Assembly - Eccentric

603726

26

Nut

254450

27

Washer

257410

28

Nut

254441

29

Lock Washer

257402

30

Washer

774012

31

Lock Washer

257392

32

Cotter Ring

260608

33

Ball Joint

265615

34

Rod

780160

35

Rod

780165

36

Dump Valve Lever

730088

37

Push On Retainer

262934

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

Bolt

243225

41

Vinyl Cap

422096

42

Spacer

423705

43

Nut

253038

44

Spacer

902297

45

Rod

780161

46

Ball Joint

265616

47

Nut

254444

48

Damper - Right

285025

49

Damper - Left

285030

50

Pin

881103

51

Pin

881110

52

Pin

881121

53

External Retainer

263490
