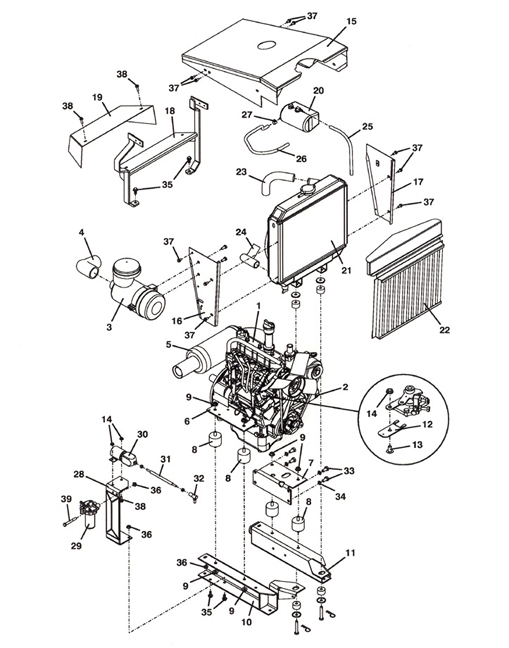

Item # |
Description |
Part Number |
1 |
Kubota Diesel Engine |
100176 |
2 |
Oil Filter |
100800 |
3 |
Air Filter |
100940 |
- |
Air Filter Cover/Cap |
1524111160 |
4 |
Air Intake Hose |
424515 |
5 |
Muffler |
603590 |
- |
Muffler Gasket |
101040 |
6 |
Upper Engine Mount - Right |
603292 |
7 |
Upper Engine Mount - Left |
603291 |
8 |
Vibration Isolator |
424078 |
9 |
Whiz Nut |
253043 |
10 |
Lower Engine Mount - Right |
643604 |
11 |
Lower Engine Mount - Left |
643605 |
12 |
Throttle Cable Linkage Extension |
723063 |
13 |
Whiz Bolt |
253176 |
14 |
Whiz Nut |
253025 |
15 |
Hood Panel |
693300 |
16 |
Grille Support - Right |
643799 |
17 |
Grille Support - Left |
693260 |
18 |
Hood Rear Support |
643797 |
19 |
Clutch Shield |
643766 |
20 |
Expansion Tank |
422012 |
21 |
Radiator |
101610 |
22 |
Grille w/Guard Assembly |
693257 |
23 |
Upper Radiator Hose |
101054 |
24 |
Lower Radiator Hose |
101055 |
25 |
Hose - Tank Overflow |
821748 |
26 |
Hose - Radiator Overflow |
821749 |
27 |
Hose Clamp |
280260 |
28 |
Mount - Fuel Solenoid/Filter |
755065 |
29 |
Fuel Filter |
101000 |
30 |
Fuel Solenoid |
603350 |
31 |
Cable Assembly |
603209 |
32 |
Ball Joint |
265610 |
33 |
Bolt |
271120 |
34 |
Lock Washer |
275580 |
35 |
Bolt |
253192 |
36 |
Whiz Nut |
253035 |
37 |
Whiz Bolt |
253173 |
38 |
Whiz Bolt |
253175 |
39 |
Bolt |
243240 |
