grasshopper

721D
21HP Kubota Diesel

Year Model:2002

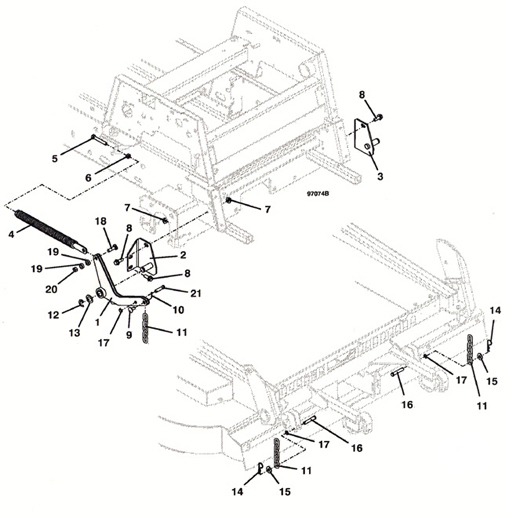

Traction Kit

Traction Kit


Click On The Part Number For Details

Item #

Description

Part Number

-

Traction Kit

503891

1

Rocker & Bearing Assembly

603715

2

Rocker Pivot Mount - Right

643611

3

Rocker Pivot Mount - Left

643612

4

Spring & Plug Nut Assembly

603799

5

Bolt

243361

6

Nut

254450

7

Whiz Nut

253043

8

Whiz Bolt

253203

9

Clevis Pin

261336

10

Cotter Pin

260648

11

Lift Chain

820320

12

External Retainer

263529

13

Washer

257092

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push On Retainer

262950

18

Carriage Bolt - Special

247254

19

Spacer

881095

20

Lock Nut

253890

21

Clevis Pin

261355
