grasshopper

725

Year Model:1991

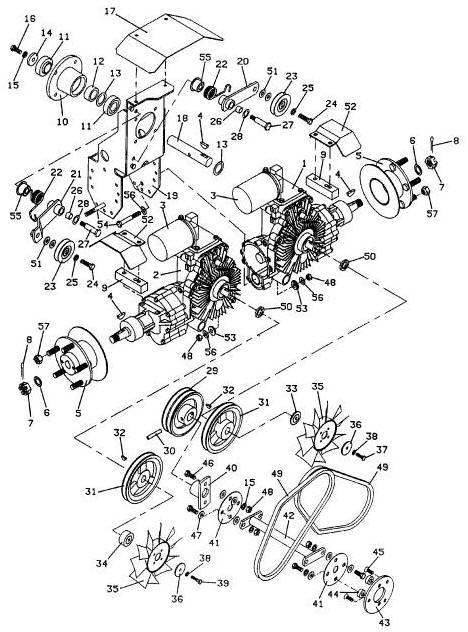

Drive Assembly




Click On The Part Number For Details

Item #

Description

Part Number

1

Hydrostatic Transmission - Right

603845

2

Hydrostatic Transmission - Left

603844

3

Hydro Oil Filter

100850

4

Woodruff Key

281845

5

Hub

603419

6

Washer

257091

7

Nut w/Nylon Insert

253500

8

Cotter Pin

260652

9

Spacer

901760

10

Spindle Housing

320522

11

Bearing

120080

12

Spacer

282630

13

Washer

257106

14

Washer Retainer

883801

15

Lock Washer

257412

16

Bolt

243331

17

Shield

722203

18

Shaft

882840

19

Mount - Center

643615

20

Lower Idler Arm Assembly w/Spring

603066

21

Upper Idler Arm Assembly w/Spring

603065

22

Torsion Spring

284425

23

Idler

393312

24

Bolt

243340

25

Lock Washer

257412

26

Nylon Bearing

422558

27

Shoulder Bolt

259745

28

Steel Shim

282350

29

Sheave

415630

30

Roll Pin

261061

31

Sheave

415560

32

Woodruff Key

281829

33

Fan Spacer - Right

423725

34

Fan Spacer - Left

423726

35

Nylon Fan CCW

320856

36

Washer

774023

37

Bolt

243030

38

Lock Washer

257392

39

Bolt

243038

40

Hub

824547

41

Coupling Disc

821530

42

Coupling Connector

643219

43

Coupling Adapter

783458

44

Coupling Spacer

902318

45

Screw

270346

46

Bolt

243330

47

Washer

257040

48

Nut

254450

49

Belt

381904

50

Washer

775003

51

Washer

257030

52

Shield

724212

53

Washer

882003

54

Bolt

243365

55

Idler Arm Bearing

422750

56

Washer

257410

57

Nut

254472
