grasshopper

725

Year Model:1991

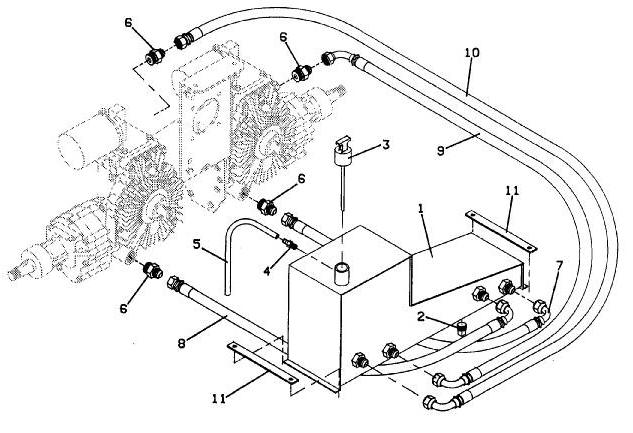

Reservoir & Hose Assembly




Click On The Part Number For Details

Item #

Description

Part Number

1 RESERVOIR ASSY W/DIPSTICK 603708
2 PLUG 365515
3 DIPSTICK OIL RES. - PLASTIC 100729
4 FITTING BARB - STRAIGHT 363826
5 HOSE - VENT CLEAR 821724
6 FITTING STEEL O-RING 363834
7 HOSE ASSY 424335
8 HOSE ASSY 424342
9 HOSE ASSY 424348
10 HOSE ASSY 424360
11 BRACKET - RESERVOIR HOLD-DOWN 774084
