grasshopper

725

Year Model:1991

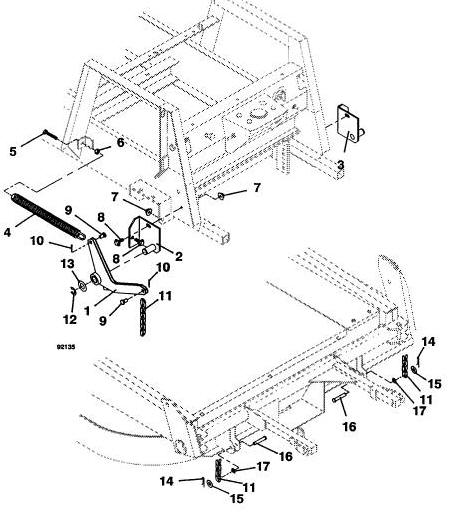

Traction Kit


Click On The Part Number For Details

Item #

Description

Part Number

1 ROCKER & BEARING ASSY 603715
  BEARING OILITE 121766
2 MOUNT - ROCKER PIVOT RT 643611
3 MOUNT - ROCKER PIVOT LT 643612
4 SPRING & PLUG ASSY 604762
5 HEX BOLT 243361
6 NUT 254450
7 NUT WHIZ 253043
8 BOLT WHIZ FLANGE 253203
9 CLEVIS PIN 261336
10 COTTER PI 260648
11 CHAIN - LIFT 6 LINKS 820322
12 RETAINER EXTERNAL 263529
13 WASHER - 18 GA BUSHING 257092
14 HAIR PIN 260523
15 WASHER 257040
16 CLEVIS PIN 261362
17 RETAINER PUSH-ON 262950
