Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

725K2 • Console

2004

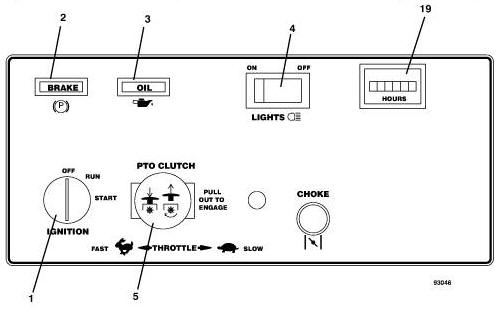

Console Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1 Kohler Ignition Swith with bare Key 183806
- Ignition Key with Cover 101101
- Nut 254498
- Plastic Panel 422078
2 Brake Indicator Light 182326
3 Oil Indicator Light 182327
4 Rocker Switch 184179
5 Push/Pull Switch 183925
19 Snap-In Hour Meter 141551
20 Console Decal for Air-Cooled model 161130
