Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

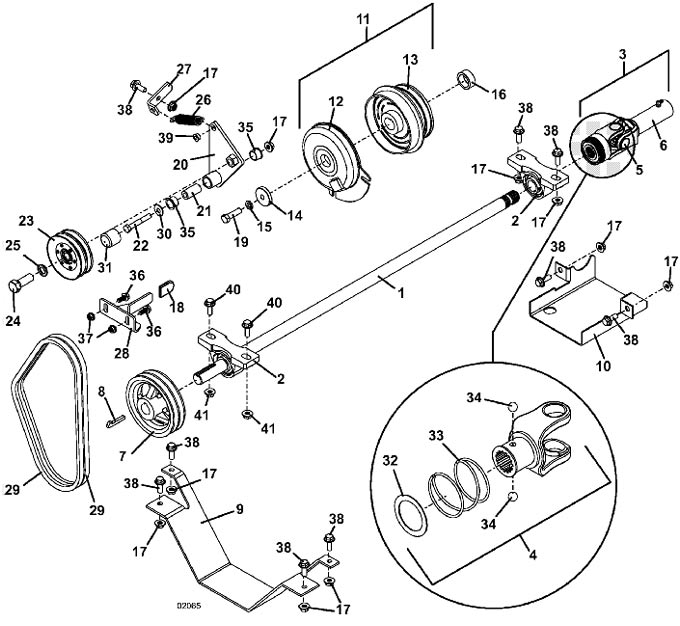

725K2 • PTO Shaft & Clutch Assembly

2004

PTO Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

37 Power Shaft

393759

2

Pillowblock Bearing

122044

3

UN Half Sleeve (includes items 4 through 6)

398914

4

Quick Disconnect Splined Yoke (includes items 36 through 38)

401019

5

Cross & Bearing

121010

6

Yoke w/Sleeve

401017

7

Sheave

415650

8

Gib Square Key

281588

9

700 Sheave Guard

725256

10

PTO Shaft Shield

729287

11

Clutch Integral Plug

388769

12

Field Assembly with Brake

388872

13

Aramture & Rotor Assembly

388862

14

Washer

883803

15

Lock Washer

257422

16

Spacer

902588

17

Whiz Nut

253043

18

Clutch Bracket Cover

422088

19

Hex Bolt

243456

20

700 KC Idler Arm

824177

21

Pivot Shaft Bearing

881105

22

Hex Bolt

243355

23

Idler

415610

24

Hex Bolt

243805

25

Lock Washer

257452

26

Spring Extension w/Swivel

283820

27

928 Idler Spring Bracket

732524

28

700 AC Anti-Rotation Bracket

725119

29

Belt

381914

30

Washer

257040

31

Vinyl Cap

422098

32

External Retainer

263660

33

Compression Spring

283525

34

Steel Ball

300014

35

Oilite Bearing

121756

36

Hex Flange Whiz Bolt

253192

37

Whiz Nut

253035

38

Flange Whiz Bolt

253203

39

Nylon Bearing

422520

40

Hex Bolt

243340

41

Washer

257040

-

Nut

254450

-

Lock Washer

257412

return to 725K2 index return to top of page
