Genuine OEM Grasshopper® Mower Parts Diagrams

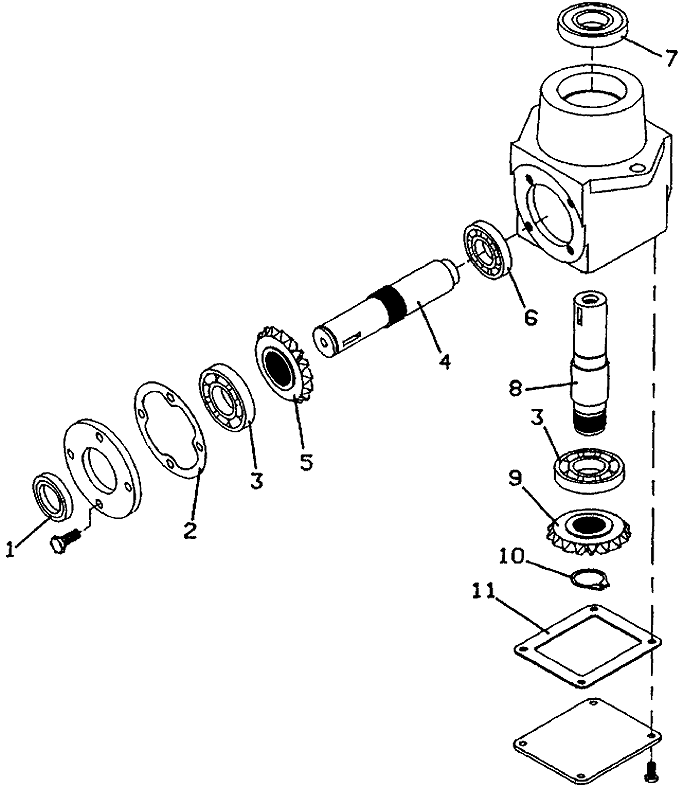

9048 9052 9061 • Right Angle Gearbox Assembly
1991
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Seal |
125336 |
2 |
Gearbox Cap Gasket |
420201 |
3 |
Ball Bearing |
120071 |
4 |
1.000 Shaft |
393517 |
5 |
.995 8 Pitch Bevel Gear |
392501 |
6 |
Ball Bearing |
120065 |
7 |
Double Seal Ball Bearing |
120070 |
8 |
.875 Shaft |
393513 |
9 |
.865 8 Pitch Bevel Gear |
392500 |
10 |
External Retainer |
263540 |
11 |
Gearbox Cover Gasket |
420200 |
12 |
Right Angle Counterclockwise Gearbox |
390024 |
return to 9048 / 9052 / 9061 index
