Genuine OEM Grasshopper® Mower Parts Diagrams

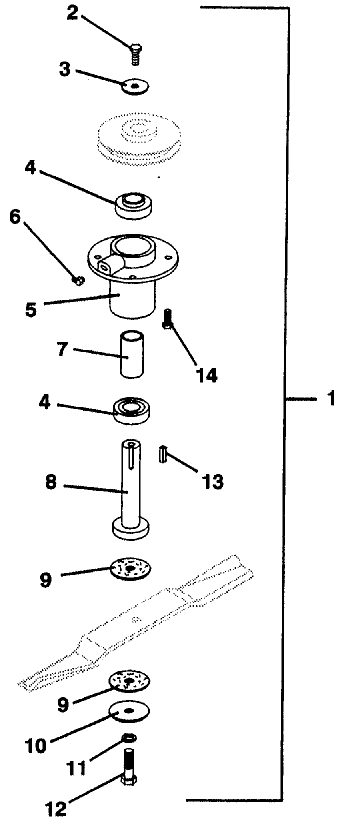

9048 9052 9061 • Blade Spindle Assembly
1992
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Blade Spindle Assembly (includes items 2-12 and 14) |
623785 |
2 |
Hex Bolt |
243331 |
3 |
Cupped Washer |
257041 |
4 |
Ball Bearing without Fluid Seal |
120081 |
5 |
Grease Spindle Housing |
320526 |
6 |
Zerk Grease Fitting |
280734 |
7 |
Bearing Tube Spacer |
903640 |
8 |
Blade STD Spindle Shaft |
603775 |
9 |
Fiber Washer |
421200 |
10 |
Washer |
257061 |
11 |
Lock Washer |
257432 |
12 |
Hex Bolt |
243581 |
13 |
Square Key |
281580 |
14 |
Hex Flange Whiz Bolt |
253192 |
